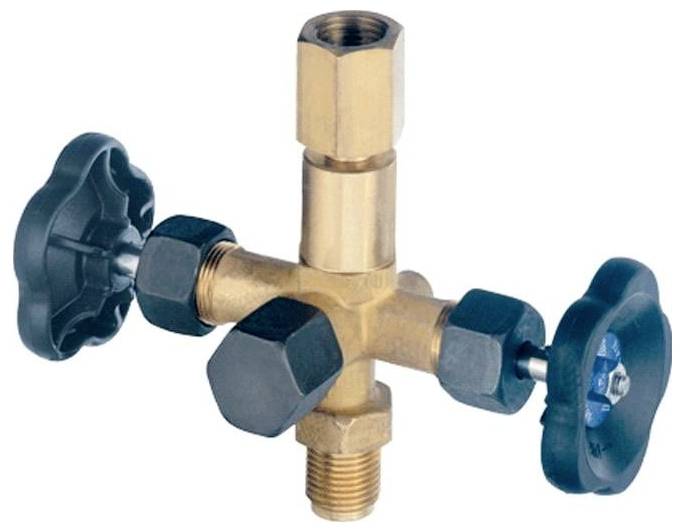

WIKA Check valve 9095110 910.11 400 bar (max) 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Design: Type B, with nipple and lock nut as well as shaft for measuring instrument holder
- Permissible nominal pressure: PN max. 400 bar
- Type of accessory 910.11-E
- Process/device connection: G1/2B tap + G1/2 with nipple and coupling nut
- Design: Without test connection, according to DIN 16270 or similar (with bleed screw)
- Material packing PTFE
- Material body: Stainless steel
- Permissible temperature for the test substance: -40...+200°C.
- Product type
Check valve
- Type
Without test connection, according to DIN 16270 or similar (with bleed screw)
- Operating temperature
-40 up to +200 °C
- Min. operating temperature
-40 °C
- Max. operating temperature
+200 °C
- Manufacturer part #
9095110
- Material (details)
Stainless steel
- Connection
G1/2B tap + G1/2 with nipple and coupling nut
- Max. operating pressure
400 bar
- Pressure range
400 bar (max)
Documents & Downloads
Datasheet
Datasheet 3524918 WIKA Check valve 9095110 910.11 400 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3524918 WIKA Check valve 9095110 910.11 400 bar (max) 1 pc(s)
Description
DIN shut-off valve Technical data according to data sheet: AC 09.02 Design: Without test connection, according to DIN 16270 or similar (with bleed screw) Material Body: Stainless steel material Packing: PTFE permitted temperature of measuring material: -40...+200°C permitted nominal pressure: PN max. 400 bar Design: Form B, with nipple and coupling nut as well as shaft for measuring device holder Process/device connection: G1/2B tap + G1/2 with nipple and coupling nut
