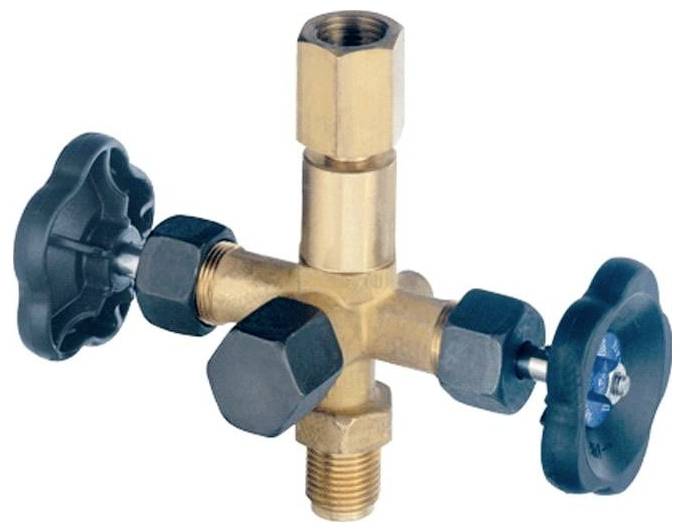

WIKA Check valve 9095152 910.11 250 bar (max) 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Design: Type B, with nipple and lock nut as well as shaft for measuring instrument holder
- Permissible nominal pressure: PN max. 250 bar
- Process/device connection: G1/2B tap + G1/2 with nipple and coupling nut
- Design: With separately lockable test connection to DIN 16272 standard
- Material packing PTFE
- Test connection M20 x 1.5
- Material body: Copper alloy
- Permissible temperature for the test substance: -10...+120°C.
- Product type
Check valve
- Type
With separately lockable test connection to DIN 16272 standard
- Operating temperature
-10 up to 120 °C
- Min. operating temperature
-10 °C
- Max. operating temperature
120 °C
- Manufacturer part #
9095152
- Material (details)
Copper alloys
- Connection
G1/2B tap + G1/2 with nipple and coupling nut
- Max. operating pressure
250 bar
- Pressure range
250 bar (max)
Documents & Downloads
Datasheet
Datasheet 3524897 WIKA Check valve 9095152 910.11 250 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3524897 WIKA Check valve 9095152 910.11 250 bar (max) 1 pc(s)
Description
DIN-Shut valve
Technical data according to data sheet AC 09.02
Design: With separately lockable test connection to DIN 16272 standard
Material body: Copper alloy
Material packing PTFE
Permissible temperature of the measuring substance: -10...+120°C
Permissible nominal pressure: PN max. 250 bar
Design: Type B, with nipple and lock nut as well as shaft for measuring instrument holder
Process/device connection: G1/2B tap + G1/2 with nipple and coupling nut
Test connection M20 x 1.5
This text is machine translated.
Technical data according to data sheet AC 09.02
Design: With separately lockable test connection to DIN 16272 standard
Material body: Copper alloy
Material packing PTFE
Permissible temperature of the measuring substance: -10...+120°C
Permissible nominal pressure: PN max. 250 bar
Design: Type B, with nipple and lock nut as well as shaft for measuring instrument holder
Process/device connection: G1/2B tap + G1/2 with nipple and coupling nut
Test connection M20 x 1.5
