Buy WIKA Choke mechanism 1516094 910.12 400 bar (max) 1 pc(s)

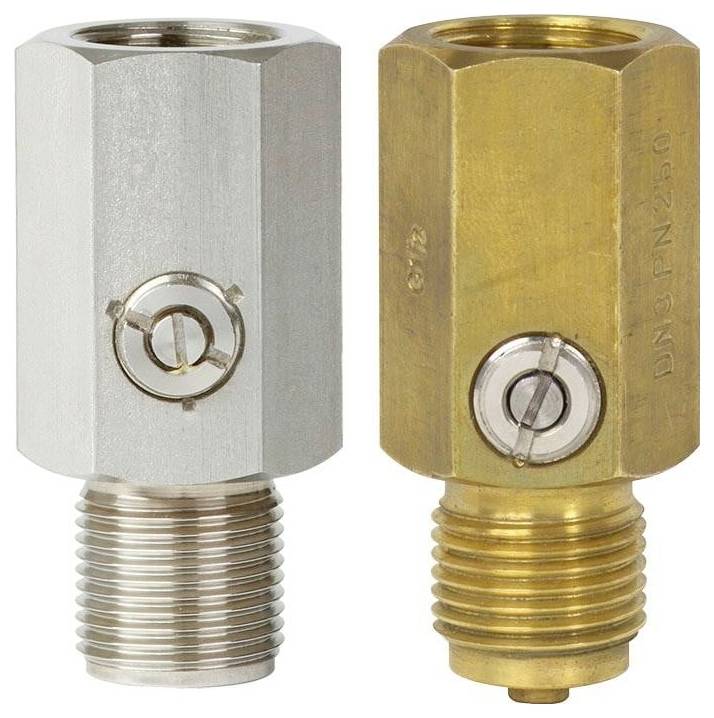

'Two hexagonal valves side by side; one silver and one brass, both with circular markers on the front. They have threaded connectors at the bottom.'

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Permissible nominal pressure: PN max. 400 bar
Accessories type 910.12-I
Material seal: FPM
Process/device connection: G1/4B journal + G1/4 sleeve
Material body: Stainless steel
Permissible temperature for the test substance: -10...+120°C.

Product type: Choke mechanism

Display range (max.): 400 bar

Operating temperature: -10 up to 120 °C

Min. operating temperature: -10 °C

Max. operating temperature: 120 °C

Manufacturer part #: 1516094

Material (details): Stainless steel

Connection: G1/4B pin + G1/4 sleeve

Max. operating pressure: 400 bar

Pressure range: 400 bar (max)

Documents & Downloads

Datasheet

Datasheet 3524934 WIKA Choke mechanism 1516094 910.12 400 bar (max) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3524934 WIKA Choke mechanism 1516094 910.12 400 bar (max) 1 pc(s)

Description

Throttle device for pressure measuring equipment Technical data according to data sheet: AC 09.03Material Body: Stainless steel 316Ti/1.4571Material Seal: FPMpermissible temperature of measuring material: -10…+120°Cpermitted nominal pressure: PN max. 400 bar Process/device connection: G1/4B spigot + G1/4 sleeve

This text is machine translated.
