Buy WIKA Choke mechanism 9090185 910.12 400 bar (max) 1 pc(s)

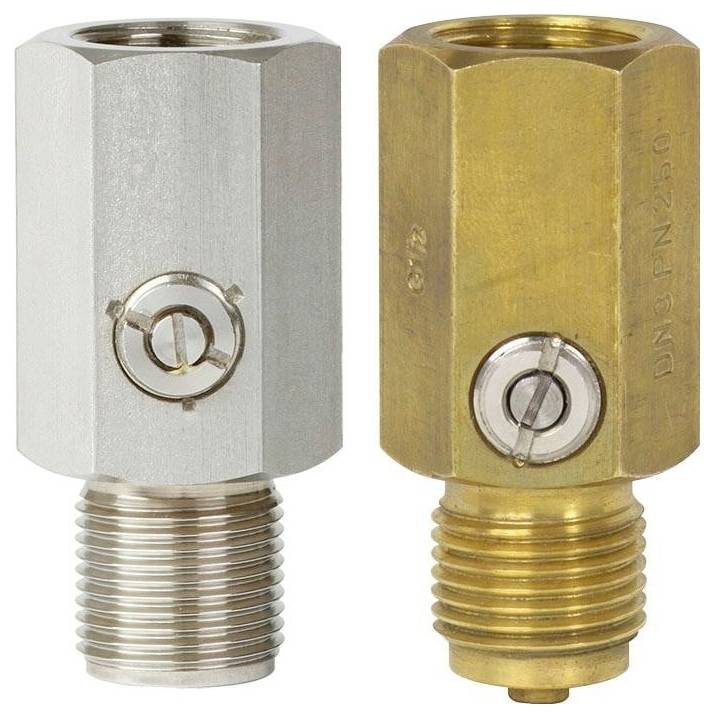

Two brass pressure relief valves with threaded connections, one silver and one gold, each featuring a vent screw for safety release.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Permissible nominal pressure: PN max. 400 bar
Material sealing: NBR
Process/device connection: G1/2B probe + G1/2 sleeve
Material body: Copper alloy
Permissible temperature for the test substance: -10...+120°C.

Product type: Choke mechanism

Display range (max.): 400 bar

Operating temperature: -10 up to 120 °C

Min. operating temperature: -10 °C

Max. operating temperature: 120 °C

Manufacturer part #: 9090185

Material (details): Copper alloys

Connection: G1/2B adapter + G1/2 sleeve

Max. operating pressure: 400 bar

Pressure range: 400 bar (max)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3524712 WIKA Choke mechanism 9090185 910.12 400 bar (max) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3524712 WIKA Choke mechanism 9090185 910.12 400 bar (max) 1 pc(s)

Description

Choke device for pressure gauges
Technical data according to data sheet AC 09.03
Material body: Copper alloy
Material sealing: NBR
Permissible temperature of the measuring substance: -10...+120°C
Permissible nominal pressure: PN max. 400 bar
Process/device connection: G1/2B probe + G1/2 sleeve
