Name: WIKA Diaphragm gauge 9042598 432.50 Connector (pressure gauge): Bottom 0 up to 40 bar 1 pc(s)
Brand: WIKA
SKU: 3525714

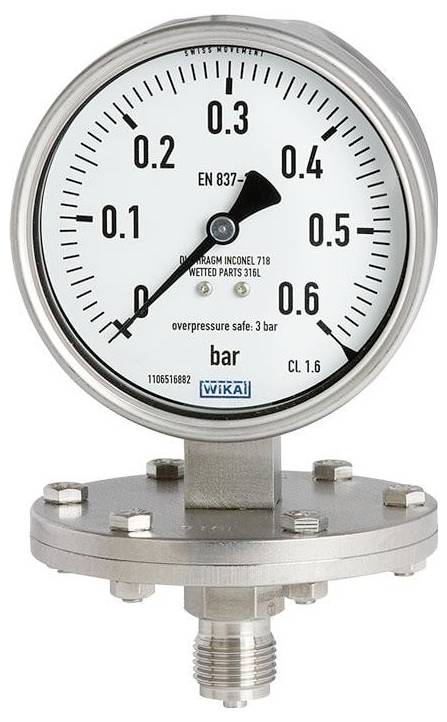

A pressure gauge displaying measurements in bar from 0 to 0.6, with increments of 0.1, marked as 'overpressure safe: 3 bar'.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type 432.50
Housing: With pressure relief opening
Display range 0...60 mbar
Process connection G 1/2 B
Nominal size 160 mm
Connection position: Below
Viewing glass: Multi-layered safety glass
Accuracy class: Class 1.6
Pressure gauge standard: International (Europe)
Housing filling: Without
Pointer: Standard pointer
Overload limit 5 x full scale value, max 40 bar
Board spring material: CrNi steel
Material: Plate spring base: CrNi steel
Ambient temperature: -20 ... +60 °C
Measuring material temperature -20...+100 °C
IP 54 protection
Pressure chamber seal FPM
Serial number: With serial number

Product type: Diaphragm gauge

Min. display range: 0 bar

Max. operating pressure: 40 bar

Display range (max.): 0.06 bar

Operating temperature: -20 up to +60 °C

Min. operating temperature: -20 °C

Max. operating temperature: +60 °C

Manufacturer part #: 9042598

Material (details): With pressure relief opening

Dim: (Ø) 160 mm

Connection: G 1/2

Connector: Bottom

Operating pressure (min.): 0 mbar

Pressure range: 0 up to 40 bar

(Ø): 160 mm

Documents & Downloads

Datasheet

Datasheet 3525714 WIKA Diaphragm gauge 9042598 432.50 Connector (pressure gauge): Bottom 0 up to 40 bar 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3525714 WIKA Diaphragm gauge 9042598 432.50 Connector (pressure gauge): Bottom 0 up to 40 bar 1 pc(s)

Description

Pressure gauge with plate spring, CrNi steel design Type: 432.50Technical data according to data sheet: PM 04.03Housing: CrNi steel ring: CrNi steel pointer: CrNi steel measuring system: CrNi steel measuring system: CrNi-steel enclosure: 1/2 40 x enclosure: Enclosure: With pressure relief opening Nominal size: 0 20...60 5 bar Process connection: G 160 BPlate temperature: CrNi steel material: Spring plate spring plate: *...*

This text is machine translated.
