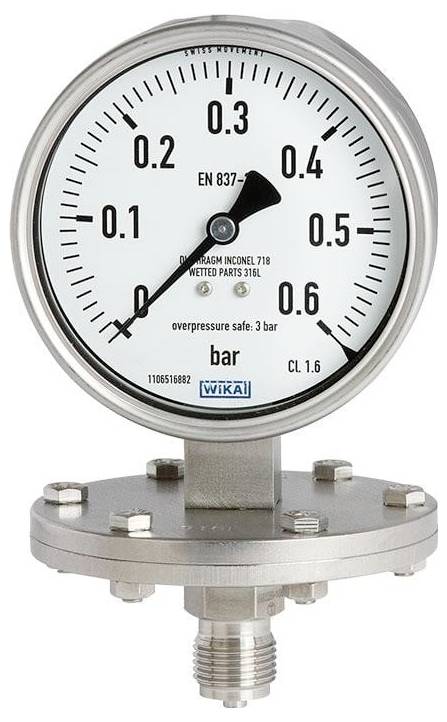

Image similar
WIKA Diaphragm gauge 9487891 432.50 Connector (pressure gauge): Bottom 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type 432.50
- Housing: With pressure relief opening
- Display range 0...25 mbar
- Process connection G 1/2 B
- Nominal size 100 mm
- Connection position: Below
- Viewing glass: Multi-layered safety glass
- Accuracy class: Class 1.6
- Pressure gauge standard: International (Europe)
- Housing filling: Without
- Pointer: Standard pointer
- Overload limit 5 x full scale value, max 40 bar
- Board spring material: CrNi steel
- Material: Plate spring base: CrNi steel
- Ambient temperature: -20 ... +60 °C
- Measuring material temperature -20...+100 °C
- IP 54 protection
- Pressure chamber seal FPM
- Serial number: With serial number
- Product type
Diaphragm gauge
- Min. display range
0 bar
- Display range (max.)
0.025 bar
- Operating temperature
-20 up to +60 °C
- Min. operating temperature
-20 °C
- Max. operating temperature
+60 °C
- Manufacturer part #
9487891
- Material (details)
With pressure relief opening
- Dim
(Ø) 100 mm
- Connection
G 1/2
- Connector
Bottom
- (Ø)
100 mm
Documents & Downloads
Datasheet
Datasheet 3525920 WIKA Diaphragm gauge 9487891 432.50 Connector (pressure gauge): Bottom 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3525920 WIKA Diaphragm gauge 9487891 432.50 Connector (pressure gauge): Bottom 1 pc(s)
Description
Pressure gauge with plate spring, CrNi steel design Type: 432.50Technical data according to data sheet: PM 04.03Housing: CrNi steel ring: CrNi steel pointer: CrNi steel measuring system: CrNi steel measuring system: CrNi-steel enclosure: 1/2 40 x enclosure: Enclosure: With pressure relief opening Nominal size: 0 20...25 5 bar Process connection: G 100 BPlate temperature: CrNi steel material: Spring plate spring plate: *...*
