Buy WIKA Differential pressure sensor 1 pc(s) A2G-500 0 Pa up to 2500 Pa Compartment Single

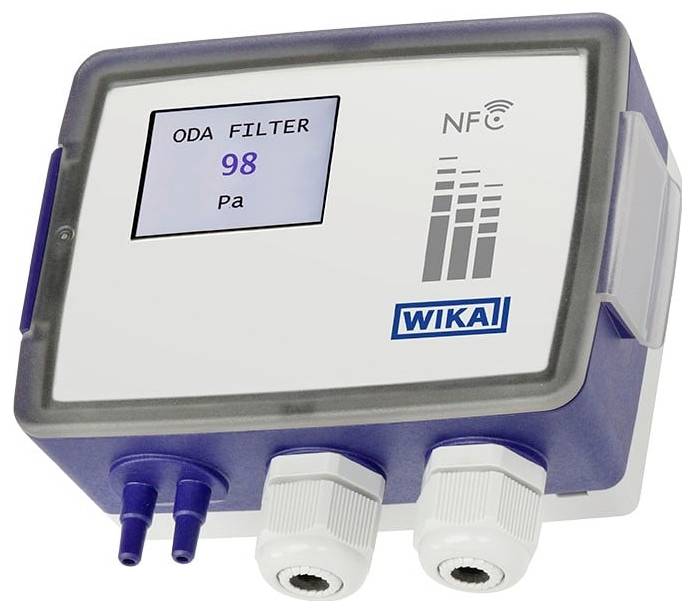

'WIKA' NFC device displaying 'ODA FILTER 98 Pa', with two connectors at the bottom.

Image similar

Packaging type

Single

Product type

Differential pressure sensor

Connector

Compartment

Model

Differential pressure

Pressure reading range (max.)

2500 Pa

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Output signal: 4...20 mA, 3-conductor
Unit: Pa
Measuring range: 0 Pa...2500 Pa
Packaging: Individual packaging
Measuring method: DP-sensor
Operating range: Operating range: -2500 Pa to 2500 Pa
Digital display: With display

Packaging type: Single

Product type: Differential pressure sensor

Type: A2G-500

Connector: Compartment

Model: Differential pressure

Outputs: Current (analogue)

Output signal (min.): 4 mA

Output signal (max.): 20 mA

Interfaces: Analogue amperage

Pressure reading range (min.): 0 Pa

Pressure reading range (max.): 2500 Pa

Pressure reading range: 0 Pa up to 2500 Pa

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3525614 WIKA Differential pressure sensor 1 pc(s) A2G-500 0 Pa up to 2500 Pa Compartment Single

User & Safety Instructions

User & Safety Instructions 3525614 WIKA Differential pressure sensor 1 pc(s) A2G-500 0 Pa up to 2500 Pa Compartment Single

Description

A2G-500 DP sensor
Operating range: Operating range: -2500 Pa to 2500 Pa
Measuring method: DP-sensor
Unit: Pa
Measuring range: 0 Pa...2500 Pa
Output signal: 4...20 mA, 3-conductor
Digital display: With display
Packaging: Individual packaging
Insert sheet with customer logo starting with: WIKA Standard
Insert sheet with customer logo: WIKA Standard

This text is machine translated.
