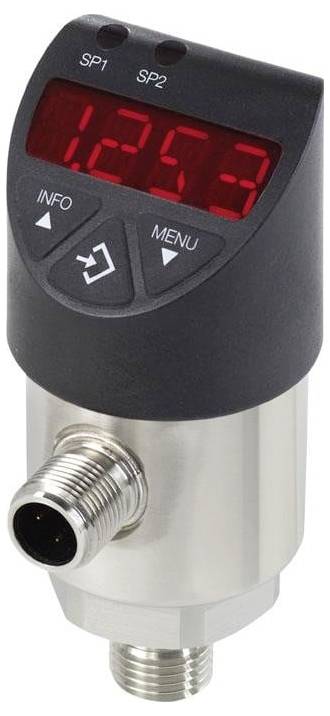

WIKA Electronic pressure switch 1 pc(s) PSD-4 0 bar up to 1 bar M12 plug (5-pin) 1 PNP
Part number:
Item no:
Product type
Electronic pressure switch
Connector
M12 plug (5-pin)
Pressure reading range (max.)
1 bar
Max. operating voltage
35 V DC
Contact type
1 PNP
Datasheet (PDF)
Technical specifications
- Output signal: Two switching outputs (PNP/NPN) + 4...20 mA IO-Link: Without
- PROCESS CONNECTION G 1/4 A DIN EN ISO 1179-2
- Measurement range: 0...1 bar
- Measuring material temperature: -20...85 °C (-4 ... +185 °F)
- Approvals: cULus
- Accuracy: +/- 0.5% of the span
- Auxiliary power: 15 - 35 V DC
- Seal: NBR
- Assignment of electrical output: U+=1, U-=3, S+=5, SP1=4, SP2=2
- Electrical output: Round plug M12x1 (5-pin)
- Product type
Electronic pressure switch
- Type
PSD-4
- Connector
M12 plug (5-pin)
- Outputs
NPN
PNP
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Interfaces
M12 plug
- Accuracy
0.5 %
- Pressure reading range (min.)
0 bar
- Pressure reading range (max.)
1 bar
- Pressure reading range
0 bar up to 1 bar
- Min. operating voltage
15 V DC
- Max. operating voltage
35 V DC
- Operating voltage
15 - 35 V DC
- Contact type
1 PNP
- Min. temperature
-20 °C
- Max. temperature
85 °C
- Content
1 pc(s)
- Connection
G 1/4 A DIN EN ISO 1179-2
Documents & Downloads
Datasheet
Datasheet 3525528 WIKA Electronic pressure switch 1 pc(s) PSD-4 0 bar up to 1 bar M12 plug (5-pin) 1 PNP
User & Safety Instructions
User & Safety Instructions 3525528 WIKA Electronic pressure switch 1 pc(s) PSD-4 0 bar up to 1 bar M12 plug (5-pin) 1 PNP
Description
PSD-4, 0...1 bar, two switching outputs (PNP/NPN) + 4...20 mA electronic pressure switch
Output signal: Two switching outputs (PNP/NPN) + 4...20 mA IO-Link: Without
Auxiliary power: 15 - 35 V DC
Measurement range: 0...1 bar
PROCESS CONNECTION G 1/4 A DIN EN ISO 1179-2
Seal: NBR
Measuring material temperature: -20...85 °C (-4 ... +185 °F)
Electrical output: Round plug M12x1 (5-pin)
Assignment of electrical output: U+=1, U-=3, S+=5, SP1=4, SP2=2
Accuracy: +/- 0.5% of the span
Approvals: cULus
With test protocol
Technical data according to data sheet: PE 81.86
This text is machine translated.
Output signal: Two switching outputs (PNP/NPN) + 4...20 mA IO-Link: Without
Auxiliary power: 15 - 35 V DC
Measurement range: 0...1 bar
PROCESS CONNECTION G 1/4 A DIN EN ISO 1179-2
Seal: NBR
Measuring material temperature: -20...85 °C (-4 ... +185 °F)
Electrical output: Round plug M12x1 (5-pin)
Assignment of electrical output: U+=1, U-=3, S+=5, SP1=4, SP2=2
Accuracy: +/- 0.5% of the span
Approvals: cULus
With test protocol
Technical data according to data sheet: PE 81.86
This text is machine translated.
