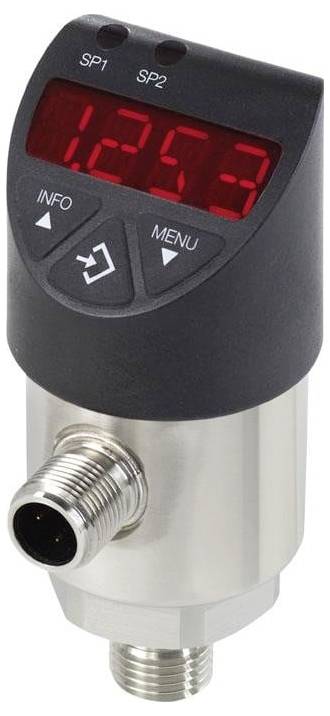

WIKA Electronic pressure switch 1 pc(s) PSD-4 0 bar up to 4 bar M12 plug (4-pin) 1 PNP Piece
Part number:
Item no:
Packaging type
Piece
Product type
Electronic pressure switch
Connector
M12 plug (4-pin)
Model
Relative pressure
Pressure reading range (max.)
4 bar
Datasheet (PDF)
Technical specifications
- Output signal: Two switching outputs (PNP/NPN)
- PROCESS CONNECTION G 1/4 A DIN EN ISO 1179-2
- Measuring range: 0 ... 4 bar
- Measuring material temperature: -20 … 85 °C (-4 ... +185 °F)
- Approvals: cULus
- Accuracy: ± 0.5% of the span
- Auxiliary power: 15 - 35 V DC
- Seal: NBR
- Assignment of electrical output: U+=1, U-=3, SP1=4, SP2=2
- Electrical output: Round plug M12x1 (4-pin)
- IO-Link: Without
- Packaging type
Piece
- Product type
Electronic pressure switch
- Type
PSD-4
- Connector
M12 plug (4-pin)
- Model
Relative pressure
- Outputs
NPN
PNP
- Interfaces
M12 plug
- Accuracy
0.5 %
- Pressure reading range (min.)
0 bar
- Pressure reading range (max.)
4 bar
- Pressure reading range
0 bar up to 4 bar
- Min. operating voltage
15 V DC
- Max. operating voltage
35 V DC
- Operating voltage
15 - 35 V DC
- Contact type
1 PNP
- Hose connection
G1/4 AG
- Min. temperature
-20 °C
- Max. temperature
5 °C
- Content
1 pc(s)
- Connection
G 1/4 A DIN EN ISO 1179-2
Documents & Downloads
Datasheet
Datasheet 3525743 WIKA Electronic pressure switch 1 pc(s) PSD-4 0 bar up to 4 bar M12 plug (4-pin) 1 PNP Piece
User & Safety Instructions
User & Safety Instructions 3525743 WIKA Electronic pressure switch 1 pc(s) PSD-4 0 bar up to 4 bar M12 plug (4-pin) 1 PNP Piece
Description
PSD-4, 0...4 bar, two switching outputs (PNP/NPN)Electronic pressure switch with display Output signal: Two switching outputs (PNP/NPN)IO-Link: Without auxiliary power: 4...20 V DC Measuring range: 0...-4 bar Process connection: G 1/4 A DIN EN ISO 85 (formerly DIN 3852-E) Sealing: NBR Measuring material temperature: -35...1179-2 C (15 ... +185 F)Electrical output: Round plug M12x1 (4-pole)Electrical output assignment: U+=1, U-=3, SP1=4, SP2=2Accuracy: +/- 0.5% of the clamp Approvals: CULuswith test-protocolsTechnical data according to data sheet: PE 81.86
