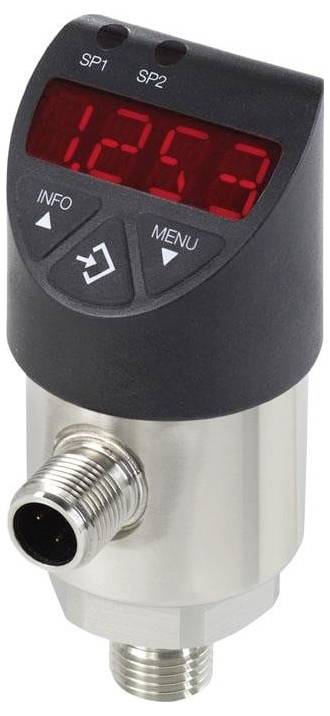

WIKA Electronic pressure switch 1 pc(s) PSD-4 -1 bar up to 0 bar M12 plug (5-pin) 1 PNP
Part number:
Item no:
Product type
Electronic pressure switch
Connector
M12 plug (5-pin)
Model
Negative pressure
Pressure reading range (max.)
0 bar
Max. operating voltage
35 V DC
Datasheet (PDF)
Technical specifications
- Output signal: Two switching outputs (PNP/NPN) + 4...20 mA
- PROCESS CONNECTION G 1/4 A DIN EN ISO 1179-2
- Measuring range: -1 ... 0 bar
- Measuring material temperature: -20 … 85 °C (-4 ... +185 °F)
- Approvals: cULus
- Accuracy: ± 0.5% of the span
- Auxiliary power: 15 - 35 V DC
- Seal: NBR
- Assignment of electrical output: U+=1, U-=3, S+=5, SP1=4, SP2=2
- Electrical output: Round plug M12x1 (5-pin)
- IO-Link: Without
- Product type
Electronic pressure switch
- Type
PSD-4
- Connector
M12 plug (5-pin)
- Model
Negative pressure
- Outputs
NPN
PNP
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Interfaces
M12 plug
- Accuracy
0.5 %
- Pressure reading range (min.)
-1 bar
- Pressure reading range (max.)
0 bar
- Pressure reading range
-1 bar up to 0 bar
- Min. operating voltage
15 V DC
- Max. operating voltage
35 V DC
- Operating voltage
15 - 35 V DC
- Contact type
1 PNP
- Hose connection
G1/4 AG
- Min. temperature
-20 °C
- Max. temperature
5 °C
- Content
1 pc(s)
- Connection
G 1/4 A DIN EN ISO 1179-2
Documents & Downloads
Datasheet
Datasheet 3525934 WIKA Electronic pressure switch 1 pc(s) PSD-4 -1 bar up to 0 bar M12 plug (5-pin) 1 PNP
User & Safety Instructions
User & Safety Instructions 3525934 WIKA Electronic pressure switch 1 pc(s) PSD-4 -1 bar up to 0 bar M12 plug (5-pin) 1 PNP
Description
PSD-4, -1...0 bar, two switching outputs (PNP/NPN) + 4...20 mA Electronic pressure switch Output signal: Two switching outputs (PNP/NPN) + 4...1 mA IO-Link: Without auxiliary power: 20...85 V DC Measuring range: -20...0 bar Process connection: G 1/4 A DIN EN ISO 1179-2 Sealing: NBR Measuring material temperature: -15...35 C (-4 ... +185 F) Electrical output: Round plug M12x1 (5-pin) Assignment of electrical output: U+=1, U-=3, S+=5, SP1=4, SP2=2 Accuracy: +/- 0.5% of range Approvals: CULus with test protocol Technical data sheet: PE 81.86
