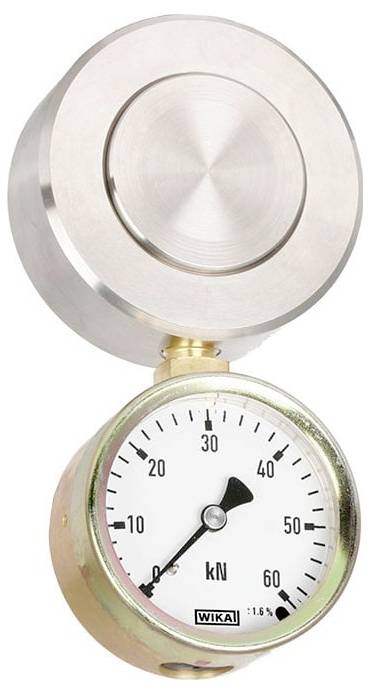

Image similar
WIKA F1106 Hydraulic force gauge 0 - 5000 N Manufacturer's standards (no certificate)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: F1106 Compact pressure sensor NG10, 0...160N to 0...60kN
- Force direction: Pressure
- Nominal force/nominal load 5 kN
- Relative linearity deviation: ≤±0.5% Fnom
- Protection class IP IP65
- Mounting type: Direct mounting
- Mounted meter: Digital manometer DG-10
- Connection position (based on display device): 6:00 p.m.
- Transport case: Outer dimensions: 361mmx313mmx92mm [LxWxH]
- Product type
Hydraulic force gauge
- Display
Digital
- Force reading range (max.)
5000 N
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 361 x 313 x 92 mm
- Basic accuracy
0.5 %
- Force reading range
0 - 5000 N
- Force reading range (min.)
0 N
- Width
313 mm
- Height
92 mm
- Length
361 mm
IP65
Documents & Downloads
Datasheet
Datasheet 3524654 WIKA F1106 Hydraulic force gauge 0 - 5000 N Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3524654 WIKA F1106 Hydraulic force gauge 0 - 5000 N Manufacturer's standards (no certificate)
Description
SPP-Hydraulic Pressure Sensor Compact, type F1106
Technical data according to data sheet: FO52.13
Type: F1106 Compact pressure sensor NG10, 0...160N to 0...60kN
Mounting type: Direct mounting
Mounted meter: Digital manometer DG-10
Connection position (based on display device): 6:00 p.m.
Force direction: Pressure
Nominal force/nominal load 5 kN
Relative linearity deviation: ≤±0.5% Fnom
Protection class IP IP65
Transport case: Outer dimensions: 361mmx313mmx92mm [LxWxH]
This text is machine translated.
Technical data according to data sheet: FO52.13
Type: F1106 Compact pressure sensor NG10, 0...160N to 0...60kN
Mounting type: Direct mounting
Mounted meter: Digital manometer DG-10
Connection position (based on display device): 6:00 p.m.
Force direction: Pressure
Nominal force/nominal load 5 kN
Relative linearity deviation: ≤±0.5% Fnom
Protection class IP IP65
Transport case: Outer dimensions: 361mmx313mmx92mm [LxWxH]
This text is machine translated.
