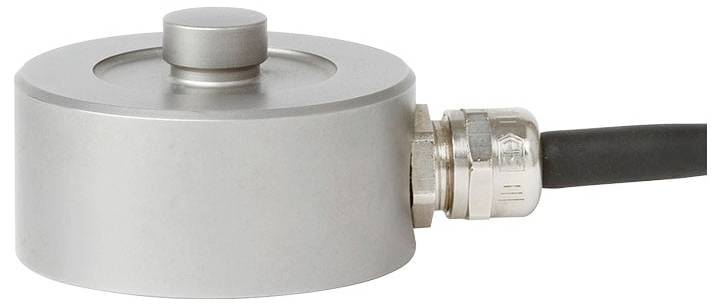

WIKA F1201 Compression gauge Manufacturer's standards (no certificate)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: F1201 pressure sensor standard, large diameter, up to 300 kN
- Force direction: Pressure
- Nominal force/nominal load 30 t
- Relative linearity deviation: ≤±0.05% Fnom
- Output signal 2.0 ±0.1 % mV/V.
- Electrical connection: Cable outlet, free wires
- Cable length 10 m
- Cable diameter: Ø4 mm
- Protection class IP: IP68
- Product type
Compression gauge
Manufacturer's standards (no certificate)
IP68
Documents & Downloads
Datasheet
Datasheet 3524664 WIKA F1201 Compression gauge Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3524664 WIKA F1201 Compression gauge Manufacturer's standards (no certificate)
Description
SPP pressure sensor, type F1201
Technical data according to data sheet: FO51.71
Type: F1201 pressure sensor standard, large diameter, up to 300 kN
Force direction: Pressure
Nominal force/nominal load 30 t
Relative linearity deviation: ≤±0.05% Fnom
Output signal 2.0 ±0.1 % mV/V.
Electrical connection: Cable outlet, free wires
Cable length 10 m
Cable diameter: Ø4 mm
Protection class IP: IP68
