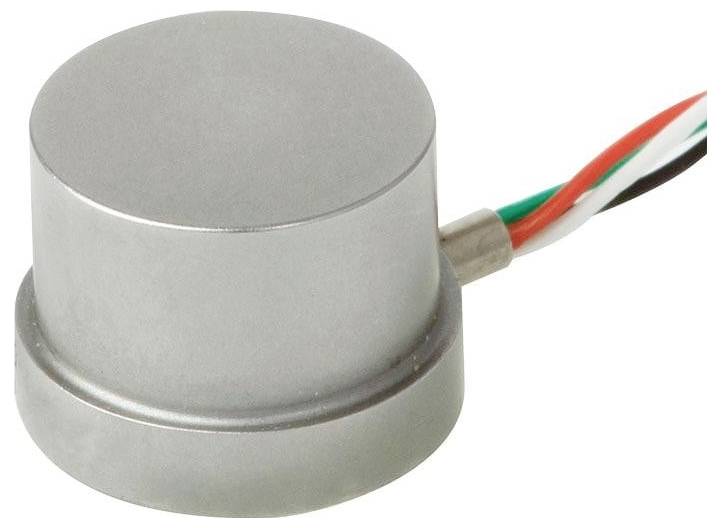

Image similar
WIKA F1224 Miniature force gauge 0 - 10000 N Manufacturer's standards (no certificate)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: F1224 Miniature force sensor, 0…1kN to 0...500kN
- Force direction: Pressure
- Nominal force/nominal load 10 kN
- Relative linearity deviation: 1.0% Fnom
- Output signal 1.5 mV/V.
- Electrical connection: Cable outlet, free wires
- Cable length: 1.5 m
- Protection class IP IP65
- Product type
Miniature force gauge
- Force reading range (max.)
10000 N
Manufacturer's standards (no certificate)
- Force reading range
0 - 10000 N
- Force reading range (min.)
0 N
IP65
Documents & Downloads
Datasheet
Datasheet 3524663 WIKA F1224 Miniature force gauge 0 - 10000 N Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3524663 WIKA F1224 Miniature force gauge 0 - 10000 N Manufacturer's standards (no certificate)
Description
SPP pressure sensor, type F1224
Technical data according to data sheet: FO51.12
Type: F1224 Miniature force sensor, 0…1kN to 0...500kN
Force direction: Pressure
Nominal force/nominal load 10 kN
Relative linearity deviation: 1.0% Fnom
Output signal 1.5 mV/V.
Electrical connection: Cable outlet, free wires
Cable length: 1.5 m
Protection class IP IP65
This text is machine translated.
Technical data according to data sheet: FO51.12
Type: F1224 Miniature force sensor, 0…1kN to 0...500kN
Force direction: Pressure
Nominal force/nominal load 10 kN
Relative linearity deviation: 1.0% Fnom
Output signal 1.5 mV/V.
Electrical connection: Cable outlet, free wires
Cable length: 1.5 m
Protection class IP IP65
This text is machine translated.
