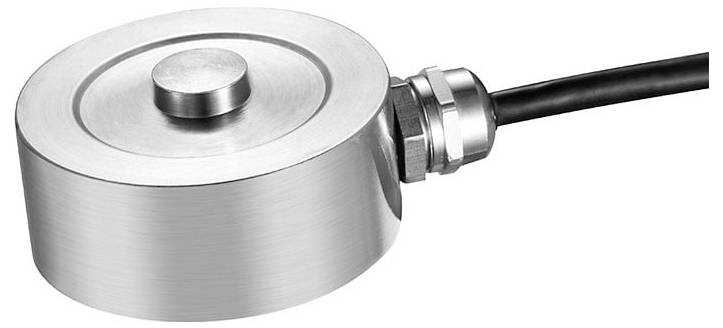

WIKA F1821 Compression gauge 5000 N (max.) Manufacturer's standards (no certificate)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: F1821 pressure sensor standard 0...200N to 0...100kN
- Force direction: Pressure
- Nominal force/nominal load 5 kN
- Relative linearity deviation: 0.5% Fnom
- Output signal 1.5 ±0.15 mV/V.
- Electrical connection: Cable outlet, free wires
- Cable length 3 m
- Cable diameter: Ø4 mm
- Protection class IP IP66
- Product type
Compression gauge
- Force reading range (max.)
5000 N
Manufacturer's standards (no certificate)
- Force reading range
5000 N (max.)
IP66
Documents & Downloads
Datasheet
Datasheet 3524555 WIKA F1821 Compression gauge 5000 N (max.) Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3524555 WIKA F1821 Compression gauge 5000 N (max.) Manufacturer's standards (no certificate)
Description
SPP pressure sensor, type F1821
Technical data according to data sheet: FO51.59
Type: F1821 pressure sensor standard 0...200N to 0...100kN
Force direction: Pressure
Nominal force/nominal load 5 kN
Relative linearity deviation: 0.5% Fnom
Output signal 1.5 ±0.15 mV/V.
Electrical connection: Cable outlet, free wires
Cable diameter: Ø4 mm
Cable length 3 m
Protection class IP IP66
This text is machine translated.
Technical data according to data sheet: FO51.59
Type: F1821 pressure sensor standard 0...200N to 0...100kN
Force direction: Pressure
Nominal force/nominal load 5 kN
Relative linearity deviation: 0.5% Fnom
Output signal 1.5 ±0.15 mV/V.
Electrical connection: Cable outlet, free wires
Cable diameter: Ø4 mm
Cable length 3 m
Protection class IP IP66
This text is machine translated.
