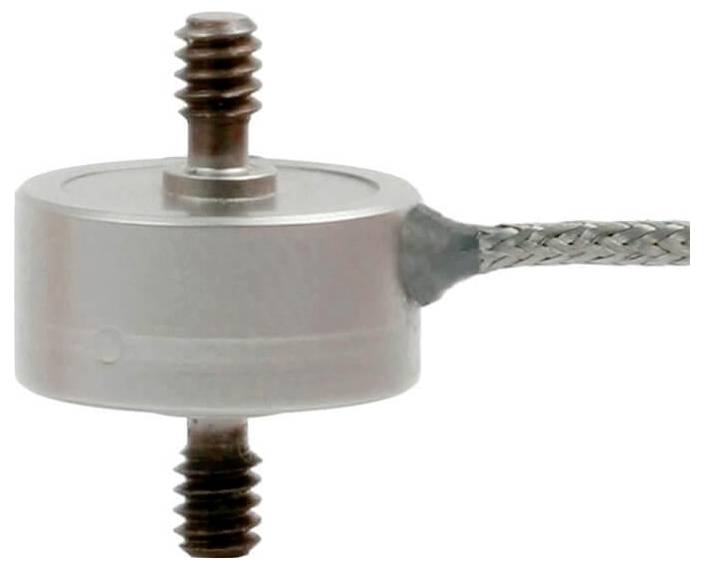

WIKA F2221 Tension/compression gauge 0 - 10000 N Manufacturer's standards (no certificate)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: F2221 tensile / compression Miniature, External thread, 0..10N-0..50kN
- Force direction: Train/pressure
- Nominal force/nominal load 10 kN
- Relative linearity deviation: ±0.20% Fnom
- Output signal 2.0 mV/V.
- Electrical connection: Cable outlet, free wires
- Cable length: 1.5 m
- Protection class IP IP65
- Product type
Tension/compression gauge
- Force reading range (max.)
10000 N
Manufacturer's standards (no certificate)
- Force reading range
0 - 10000 N
- Force reading range (min.)
0 N
IP65
Documents & Downloads
Datasheet
Datasheet 3524646 WIKA F2221 Tension/compression gauge 0 - 10000 N Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3524646 WIKA F2221 Tension/compression gauge 0 - 10000 N Manufacturer's standards (no certificate)
Description
SPP train/pressure sensor, type F2221
Technical data according to data sheet: FO51.26
Type: F2221 tensile / compression Miniature, External thread, 0..10N-0..50kN
Force direction: Train/pressure
Nominal force/nominal load 10 kN
Relative linearity deviation: ±0.20% Fnom
Output signal 2.0 mV/V.
Electrical connection: Cable outlet, free wires
Cable length: 1.5 m
Protection class IP IP65
This text is machine translated.
Technical data according to data sheet: FO51.26
Type: F2221 tensile / compression Miniature, External thread, 0..10N-0..50kN
Force direction: Train/pressure
Nominal force/nominal load 10 kN
Relative linearity deviation: ±0.20% Fnom
Output signal 2.0 mV/V.
Electrical connection: Cable outlet, free wires
Cable length: 1.5 m
Protection class IP IP65
