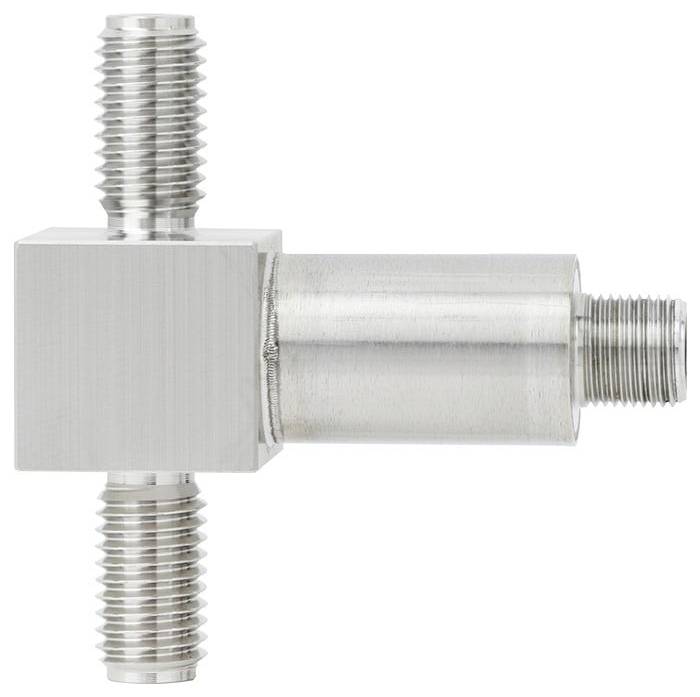

WIKA F2301 Tension/compression gauge 2000 N (max.) Manufacturer's standards (no certificate)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: F2301 tensile/compressive force, integrated Amplifier, external thread., 0..1kN-0..100kN
- Force direction: Train/pressure
- Nominal force/nominal load 2 kN
- Relative linearity deviation: ±0.5% Fnom
- Output signal: 4 ... 20 mA, 2 -L
- Electrical connection: Round connector, M12x1
- Protection class IP IP67
- Power introduction: M12
- Certificate / Certificate for: Power Electrical
- Measuring accuracy: In 3 points - 50% steps, over the entire measuring range
- Product type
Tension/compression gauge
- Force reading range (max.)
2000 N
Manufacturer's standards (no certificate)
- Basic accuracy
0.5 %
- Force reading range
2000 N (max.)
- Interfaces
M12 plug
IP67
Documents & Downloads
Datasheet
Datasheet 3524587 WIKA F2301 Tension/compression gauge 2000 N (max.) Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3524587 WIKA F2301 Tension/compression gauge 2000 N (max.) Manufacturer's standards (no certificate)
Description
SPP train/pressure sensor, type F2301
Technical data according to data sheet: FO51.17
Type: F2301 tensile/compressive force, integrated Amplifier, external thread., 0..1kN-0..100kN
Force direction: Train/pressure
Nominal force/nominal load 2 kN
Relative linearity deviation: ±0.5% Fnom
Output signal: 4 ... 20 mA, 2 -L
Electrical connection: Round connector, M12x1
Power introduction: M12
Protection class IP IP67
TEST PROTOCOL - electric force in 50% steps upwards
English and German
Certificate / Certificate for: Power Electrical
Compression force
Measuring accuracy: In 3 points - 50% steps, over the entire measuring range
This text is machine translated.
Technical data according to data sheet: FO51.17
Type: F2301 tensile/compressive force, integrated Amplifier, external thread., 0..1kN-0..100kN
Force direction: Train/pressure
Nominal force/nominal load 2 kN
Relative linearity deviation: ±0.5% Fnom
Output signal: 4 ... 20 mA, 2 -L
Electrical connection: Round connector, M12x1
Power introduction: M12
Protection class IP IP67
TEST PROTOCOL - electric force in 50% steps upwards
English and German
Certificate / Certificate for: Power Electrical
Compression force
Measuring accuracy: In 3 points - 50% steps, over the entire measuring range
This text is machine translated.
