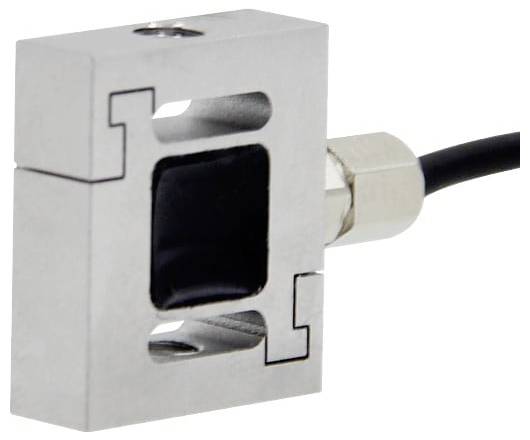

Image similar
WIKA F2808 Tension/compression gauge 0 - 500 N Manufacturer's standards (no certificate)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: F2808 tensile / compression force, S-type miniature, internal thread, 0..5N-0..2.000N
- Force direction: Train/pressure
- Nominal force/nominal load 500 N
- Relative linearity deviation: ±0.15% Fnom
- Output signal 2.0 ±0.2 mV/V.
- Electrical connection: Cable outlet, free wires
- Cable length 3 m
- Protection class IP IP66
- Power transmission: M4
- Product type
Tension/compression gauge
- Force reading range (max.)
500 N
Manufacturer's standards (no certificate)
- Basic accuracy
0.15 %
- Force reading range
0 - 500 N
- Force reading range (min.)
0 N
IP66
Documents & Downloads
Datasheet
Datasheet 3524558 WIKA F2808 Tension/compression gauge 0 - 500 N Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3524558 WIKA F2808 Tension/compression gauge 0 - 500 N Manufacturer's standards (no certificate)
Description
SPP draft/pressure sensor, type F2808
Technical data according to data sheet: FO51.68
Type: F2808 tensile / compression force, S-type miniature, internal thread, 0..5N-0..2.000N
Force direction: Train/pressure
Nominal force/nominal load 500 N
Relative linearity deviation: ±0.15% Fnom
Output signal 2.0 ±0.2 mV/V.
Electrical connection: Cable outlet, free wires
Cable length 3 m
Power transmission: M4
Protection class IP IP66
This text is machine translated.
Technical data according to data sheet: FO51.68
Type: F2808 tensile / compression force, S-type miniature, internal thread, 0..5N-0..2.000N
Force direction: Train/pressure
Nominal force/nominal load 500 N
Relative linearity deviation: ±0.15% Fnom
Output signal 2.0 ±0.2 mV/V.
Electrical connection: Cable outlet, free wires
Cable length 3 m
Power transmission: M4
Protection class IP IP66
This text is machine translated.
