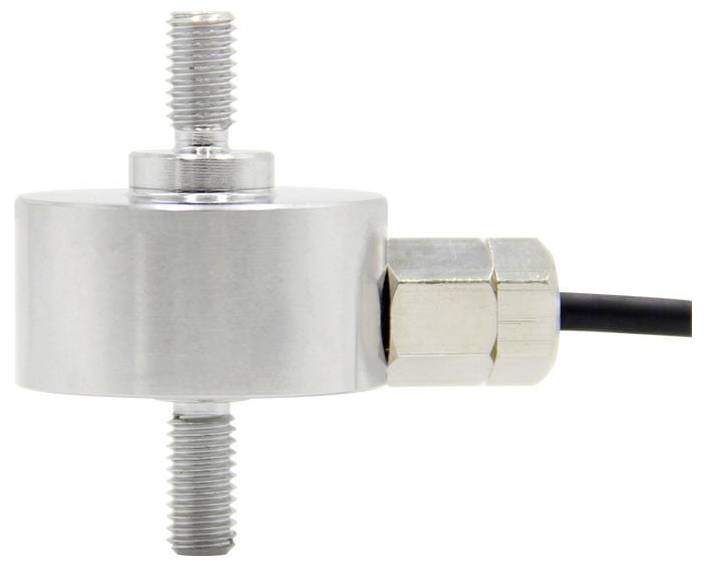

Image similar
WIKA F2812 Tension/compression gauge 0 - 1.000 N Manufacturer's standards (no certificate)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: F2812 traction/pressure sensor, ultra-compact, exterior, 0..50N-0..1.000N
- Force direction: Train/pressure
- Nominal force/nominal load 1,000 N
- Relative linearity deviation: ±0.5% Fnom
- Output signal 2.0 ±0.2 mV/V.
- Electrical connection: Cable outlet, free wires
- Cable length 3 m
- Protection class IP IP65
- Product type
Tension/compression gauge
- Force reading range (max.)
1.000 N
Manufacturer's standards (no certificate)
- Force reading range
0 - 1.000 N
- Force reading range (min.)
0 N
IP65
Documents & Downloads
Datasheet
Datasheet 3524561 WIKA F2812 Tension/compression gauge 0 - 1.000 N Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3524561 WIKA F2812 Tension/compression gauge 0 - 1.000 N Manufacturer's standards (no certificate)
Description
SPP train/pressure sensor, type F2812
Technical data according to data sheet: FO51.49
Type: F2812 traction/pressure sensor, ultra-compact, exterior, 0..50N-0..1.000N
Force direction: Train/pressure
Nominal force/nominal load 1,000 N
Relative linearity deviation: ±0.5% Fnom
Output signal 2.0 ±0.2 mV/V.
Electrical connection: Cable outlet, free wires
Cable length 3 m
Protection class IP IP65
Technical data according to data sheet: FO51.49
This text is machine translated.
Technical data according to data sheet: FO51.49
Type: F2812 traction/pressure sensor, ultra-compact, exterior, 0..50N-0..1.000N
Force direction: Train/pressure
Nominal force/nominal load 1,000 N
Relative linearity deviation: ±0.5% Fnom
Output signal 2.0 ±0.2 mV/V.
Electrical connection: Cable outlet, free wires
Cable length 3 m
Protection class IP IP65
Technical data according to data sheet: FO51.49
This text is machine translated.
