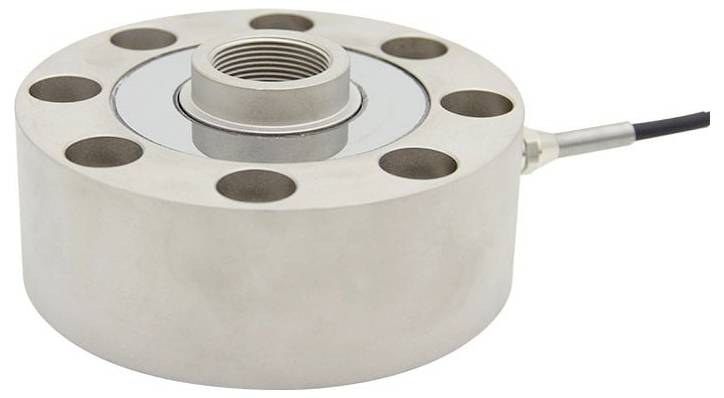

Image similar
WIKA F2822 Tension/compression gauge 0 - 250000 N Manufacturer's standards (no certificate)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: F2822 traction-/pressure pumps. For material test.,inner thread., 0..5kN-0..500kN
- Force direction: Train/pressure
- Nominal force/nominal load 250 kN
- Relative linearity deviation: ±0.05% Fnom
- Output signal 2.0 ±0.02 mV/V.
- Electrical connection: Cable outlet, free wires
- Cable length: 5 m
- Cable diameter: Ø5 mm
- Protection class IP IP66
- Units: KN
- Product type
Tension/compression gauge
- Force reading range (max.)
250000 N
Manufacturer's standards (no certificate)
- Force reading range
0 - 250000 N
- Force reading range (min.)
0 N
IP66
Documents & Downloads
Datasheet
Datasheet 3524617 WIKA F2822 Tension/compression gauge 0 - 250000 N Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3524617 WIKA F2822 Tension/compression gauge 0 - 250000 N Manufacturer's standards (no certificate)
Description
SPP train/pressure sensor, type F2822
Technical data according to data sheet: FO51.50
Type: F2822 traction-/pressure pumps. For material test.,inner thread., 0..5kN-0..500kN
Units: KN
Nominal force/nominal load 250 kN
Relative linearity deviation: ±0.05% Fnom
Force direction: Train/pressure
Electrical connection: Cable outlet, free wires
Cable length: 5 m
Cable diameter: Ø5 mm
Protection class IP IP66
Output signal 2.0 ±0.02 mV/V.
This text is machine translated.
Technical data according to data sheet: FO51.50
Type: F2822 traction-/pressure pumps. For material test.,inner thread., 0..5kN-0..500kN
Units: KN
Nominal force/nominal load 250 kN
Relative linearity deviation: ±0.05% Fnom
Force direction: Train/pressure
Electrical connection: Cable outlet, free wires
Cable length: 5 m
Cable diameter: Ø5 mm
Protection class IP IP66
Output signal 2.0 ±0.02 mV/V.
This text is machine translated.
