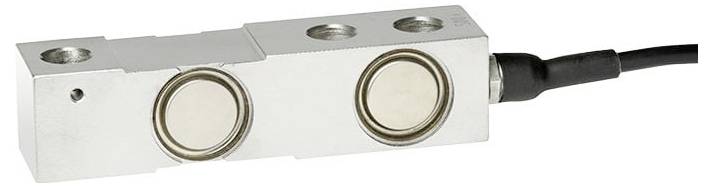

Image similar
WIKA F3201 Shear force gauge Manufacturer's standards (no certificate)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: F3201 shear rod, shear forces up to 2,000 kg
- Force direction: Train/pressure
- Rated power/nominal load 1,000 kg
- Relative linearity deviation: 0.017% Fnom
- Output signal 2.0 mV/V.
- Electrical connection: Cable outlet, free wires
- Cable length: 5 m
- Cable diameter: Ø6 mm
- Protection class IP: IP68 and IP69K
- Product type
Shear force gauge
Manufacturer's standards (no certificate)
IP68
IP69K
Documents & Downloads
Datasheet
Datasheet 3524566 WIKA F3201 Shear force gauge Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3524566 WIKA F3201 Shear force gauge Manufacturer's standards (no certificate)
Description
SPP shaving rod, type F3201
Technical data according to data sheet: FO51.72
Type: F3201 shear rod, shear forces up to 2,000 kg
Force direction: Train/pressure
Rated power/nominal load 1,000 kg
Relative linearity deviation: 0.017% Fnom
Output signal 2.0 mV/V.
Electrical connection: Cable outlet, free wires
Cable length: 5 m
Cable diameter: Ø6 mm
Protection class IP: IP68 and IP69K
This text is machine translated.
Technical data according to data sheet: FO51.72
Type: F3201 shear rod, shear forces up to 2,000 kg
Force direction: Train/pressure
Rated power/nominal load 1,000 kg
Relative linearity deviation: 0.017% Fnom
Output signal 2.0 mV/V.
Electrical connection: Cable outlet, free wires
Cable length: 5 m
Cable diameter: Ø6 mm
Protection class IP: IP68 and IP69K
This text is machine translated.
