WIKA F3203 Bending rod Manufacturer's standards (no certificate)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: F3203 bending rod, forces up to 500 kg
- Force direction: Train/pressure
- Rated power/nominal load 200 kg
- Relative linearity deviation: 0.017% Fnom
- Output signal 2.0 ±0.1 % mV/V.
- Electrical connection: Cable outlet, free wires
- Cable length 3 m
- Cable diameter: Ø4 mm
- Protection class IP: IP68 and IP69K
- Product type
Bending rod
Manufacturer's standards (no certificate)
IP68
IP69K
Documents & Downloads
Datasheet
Datasheet 3524577 WIKA F3203 Bending rod Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3524577 WIKA F3203 Bending rod Manufacturer's standards (no certificate)
Description

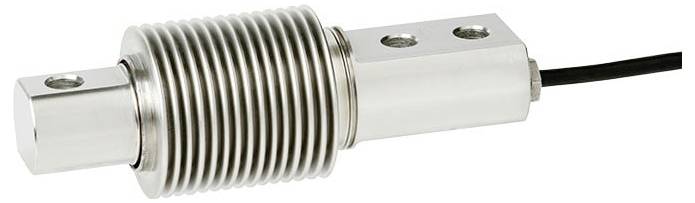

SPP bending rod, type F3203
Technical data according to data sheet: FO51.73
Type: F3203 bending rod, forces up to 500 kg
Force direction: Train/pressure
Rated power/nominal load 200 kg
Relative linearity deviation: 0.017% Fnom
Output signal 2.0 ±0.1 % mV/V.
Electrical connection: Cable outlet, free wires
Cable length 3 m
Cable diameter: Ø4 mm
Protection class IP: IP68 and IP69K
This text is machine translated.
Technical data according to data sheet: FO51.73
Type: F3203 bending rod, forces up to 500 kg
Force direction: Train/pressure
Rated power/nominal load 200 kg
Relative linearity deviation: 0.017% Fnom
Output signal 2.0 ±0.1 % mV/V.
Electrical connection: Cable outlet, free wires
Cable length 3 m
Cable diameter: Ø4 mm
Protection class IP: IP68 and IP69K
This text is machine translated.
