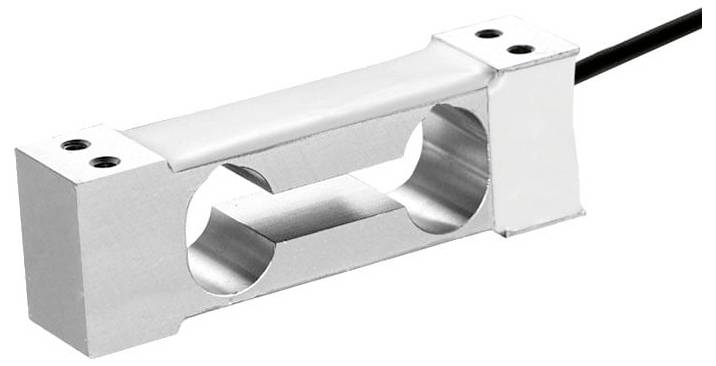

WIKA F4802 Platform load cell Manufacturer's standards (no certificate)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: F4802 platform load cell, aluminum 0...0.3kg to 0...10kg
- Force direction: Pressure
- Rated power/nominal load 1 kg
- Relative linearity deviation: ±0.02% Fnom
- Output signal 2.0 ±0.2 mV/V.
- Electrical connection: Cable outlet, free wires
- Cable length: 0.45 m
- Cable diameter: Ø3 mm
- Protection class IP IP65
- Product type
Platform load cell
Manufacturer's standards (no certificate)
IP65
Documents & Downloads
Datasheet
Datasheet 3524541 WIKA F4802 Platform load cell Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3524541 WIKA F4802 Platform load cell Manufacturer's standards (no certificate)
Description
SPP platform load cell, type F4802
Technical data according to data sheet: FO53.13
Type: F4802 platform load cell, aluminum 0...0.3kg to 0...10kg
Force direction: Pressure
Rated power/nominal load 1 kg
Relative linearity deviation: ±0.02% Fnom
Output signal 2.0 ±0.2 mV/V.
Electrical connection: Cable outlet, free wires
Cable length: 0.45 m
Cable diameter: Ø3 mm
Protection class IP IP65
This text is machine translated.
Technical data according to data sheet: FO53.13
Type: F4802 platform load cell, aluminum 0...0.3kg to 0...10kg
Force direction: Pressure
Rated power/nominal load 1 kg
Relative linearity deviation: ±0.02% Fnom
Output signal 2.0 ±0.2 mV/V.
Electrical connection: Cable outlet, free wires
Cable length: 0.45 m
Cable diameter: Ø3 mm
Protection class IP IP65
This text is machine translated.
