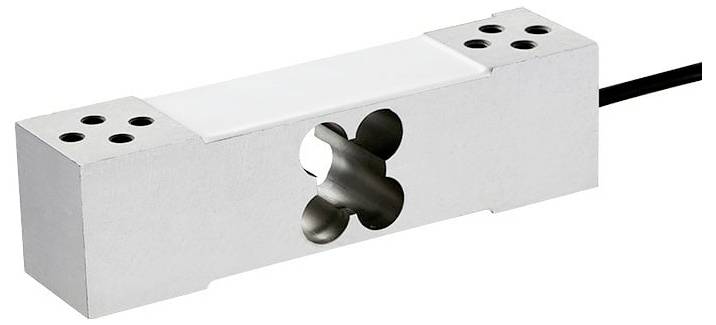

Image similar
Image similar
WIKA F4818 Platform load cell Manufacturer's standards (no certificate)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: F4818 platform load cell, aluminum 0...20kg to 0...500kg
- Force direction: Pressure
- Rated power/nominal load 200 kg
- Relative linearity deviation: ±0.02% Fnom
- Output signal 2.0 ±0.2 mV/V.
- Electrical connection: Cable outlet, free wires
- Cable length: 1.5 m
- Cable diameter: Ø5 mm
- Protection class IP IP65
- Product type
Platform load cell
Manufacturer's standards (no certificate)
IP65
Documents & Downloads
Datasheet
Datasheet 3524542 WIKA F4818 Platform load cell Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3524542 WIKA F4818 Platform load cell Manufacturer's standards (no certificate)
Description
SPP platform load cell, type F4818
Technical data according to data sheet: FO53.14
Type: F4818 platform load cell, aluminum 0...20kg to 0...500kg
Force direction: Pressure
Rated power/nominal load 200 kg
Relative linearity deviation: ±0.02% Fnom
Output signal 2.0 ±0.2 mV/V.
Electrical connection: Cable outlet, free wires
Cable length: 1.5 m
Cable diameter: Ø5 mm
Protection class IP IP65
This text is machine translated.
Technical data according to data sheet: FO53.14
Type: F4818 platform load cell, aluminum 0...20kg to 0...500kg
Force direction: Pressure
Rated power/nominal load 200 kg
Relative linearity deviation: ±0.02% Fnom
Output signal 2.0 ±0.2 mV/V.
Electrical connection: Cable outlet, free wires
Cable length: 1.5 m
Cable diameter: Ø5 mm
Protection class IP IP65
This text is machine translated.
