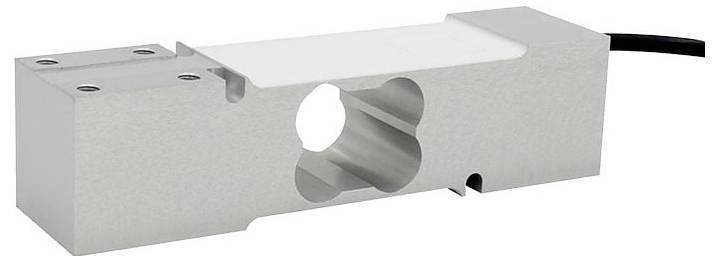

WIKA F4883 Platform load cell Manufacturer's standards (no certificate)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: F4883 platform load cell, aluminum 0 ... 8 kg to 0 ... 300 kg
- Force direction: Pressure
- Rated power/nominal load 30 kg
- Relative linearity deviation: ±0.02% Fnom
- Output signal 2.0 ±0.2 mV/V.
- Electrical connection: Cable outlet, free wires
- Cable length 3 m
- Cable diameter: Ø5 mm
- Protection class IP IP66
- Product type
Platform load cell
Manufacturer's standards (no certificate)
IP66
Documents & Downloads
Datasheet
Datasheet 3524572 WIKA F4883 Platform load cell Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3524572 WIKA F4883 Platform load cell Manufacturer's standards (no certificate)
Description
SPP platform load cell, type F4883
Technical data according to data sheet: FO53.18
Type: F4883 platform load cell, aluminum 0 ... 8 kg to 0 ... 300 kg
Force direction: Pressure
Rated power/nominal load 30 kg
Relative linearity deviation: ±0.02% Fnom
Output signal 2.0 ±0.2 mV/V.
Electrical connection: Cable outlet, free wires
Cable length 3 m
Cable diameter: Ø5 mm
Protection class IP IP66
This text is machine translated.
Technical data according to data sheet: FO53.18
Type: F4883 platform load cell, aluminum 0 ... 8 kg to 0 ... 300 kg
Force direction: Pressure
Rated power/nominal load 30 kg
Relative linearity deviation: ±0.02% Fnom
Output signal 2.0 ±0.2 mV/V.
Electrical connection: Cable outlet, free wires
Cable length 3 m
Cable diameter: Ø5 mm
Protection class IP IP66
This text is machine translated.
