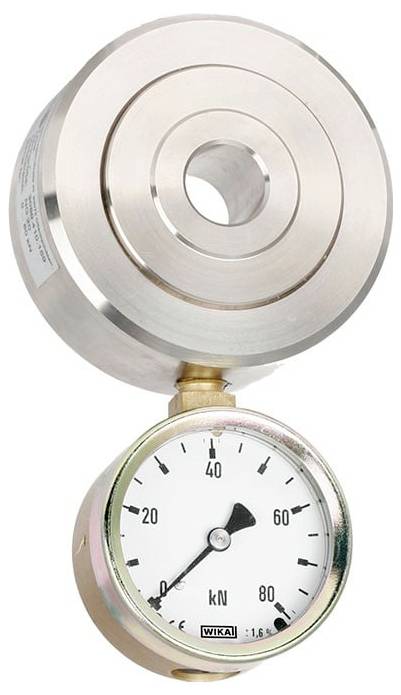

Image similar
WIKA F6116 Hydraulic circular force gauge 0 - 50000 N Manufacturer's standards (no certificate)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: F6116 Hydraulic ring force transducer NG20, "Compact" 0...320N to 0...120kN
- Nominal force/nominal load 50 kN
- Relative linearity deviation: ≤±1.6% Fnom (±2.5% with trailing pointer)
- Protection class IP IP65
- Mounting type: Direct mounting
- Attachment measuring device: Pressure gauge 213.40 (NG63) with drag indicator
- Connection position (based on display device): 12:00 p.m.
- Transport case: Outer dimensions: 361mmx313mmx92mm [LxWxH]
- Product type
Hydraulic circular force gauge
- Display
Analogue
- Force reading range (max.)
50000 N
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 361 x 313 x 92 mm
- Basic accuracy
1.6 %
- Force reading range
0 - 50000 N
- Force reading range (min.)
0 N
- Width
313 mm
- Height
92 mm
- Length
361 mm
IP65
Documents & Downloads
Datasheet
Datasheet 3524620 WIKA F6116 Hydraulic circular force gauge 0 - 50000 N Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3524620 WIKA F6116 Hydraulic circular force gauge 0 - 50000 N Manufacturer's standards (no certificate)
Description
SPP hydraulic ring force transducer NG20, type F6116
Technical data according to data sheet: FO52.18
Type: F6116 Hydraulic ring force transducer NG20, "Compact" 0...320N to 0...120kN
Mounting type: Direct mounting
Attachment measuring device: Pressure gauge 213.40 (NG63) with drag indicator
Connection position (based on display device): 12:00 p.m.
Nominal force/nominal load 50 kN
Relative linearity deviation: ≤±1.6% Fnom (±2.5% with trailing pointer)
Protection class IP IP65
Transport case: Outer dimensions: 361mmx313mmx92mm [LxWxH]
This text is machine translated.
Technical data according to data sheet: FO52.18
Type: F6116 Hydraulic ring force transducer NG20, "Compact" 0...320N to 0...120kN
Mounting type: Direct mounting
Attachment measuring device: Pressure gauge 213.40 (NG63) with drag indicator
Connection position (based on display device): 12:00 p.m.
Nominal force/nominal load 50 kN
Relative linearity deviation: ≤±1.6% Fnom (±2.5% with trailing pointer)
Protection class IP IP65
Transport case: Outer dimensions: 361mmx313mmx92mm [LxWxH]
This text is machine translated.
