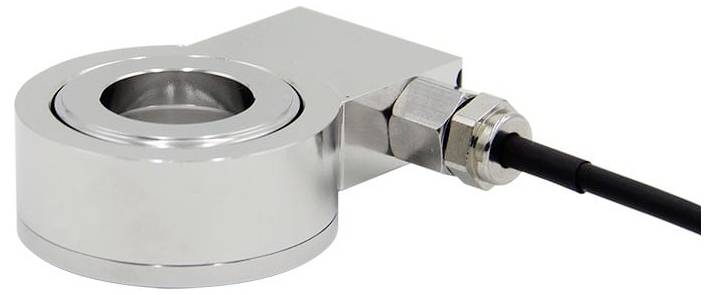

Image similar
WIKA F6804 Circular force gauge 0 - 50000 N Manufacturer's standards (no certificate)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type: F6804 Ring force sensor for screw forces 0...3kN to 0...450kN
- Force direction: Pressure
- Nominal force/nominal load 50 kN
- Relative linearity deviation: 2.0% Fnom
- Output signal 1.0 ±0.1 mV/V.
- Electrical connection: Cable outlet, free wires
- Cable length 3 m
- Protection class IP IP65
- Product type
Circular force gauge
- Force reading range (max.)
50000 N
Manufacturer's standards (no certificate)
- Basic accuracy
2.0 %
- Force reading range
0 - 50000 N
- Force reading range (min.)
0 N
IP65
Documents & Downloads
Datasheet
Datasheet 3524603 WIKA F6804 Circular force gauge 0 - 50000 N Manufacturer's standards (no certificate)
User & Safety Instructions
User & Safety Instructions 3524603 WIKA F6804 Circular force gauge 0 - 50000 N Manufacturer's standards (no certificate)
Description
SPP ring force sensor, type F6804
Technical data according to data sheet: FO51.60
Type: F6804 Ring force sensor for screw forces 0...3kN to 0...450kN
Force direction: Pressure
Nominal force/nominal load 50 kN
Relative linearity deviation: 2.0% Fnom
Output signal 1.0 ±0.1 mV/V.
Electrical connection: Cable outlet, free wires
Cable length 3 m
Protection class IP IP65
This text is machine translated.
Technical data according to data sheet: FO51.60
Type: F6804 Ring force sensor for screw forces 0...3kN to 0...450kN
Force direction: Pressure
Nominal force/nominal load 50 kN
Relative linearity deviation: 2.0% Fnom
Output signal 1.0 ±0.1 mV/V.
Electrical connection: Cable outlet, free wires
Cable length 3 m
Protection class IP IP65
This text is machine translated.
