Image similar

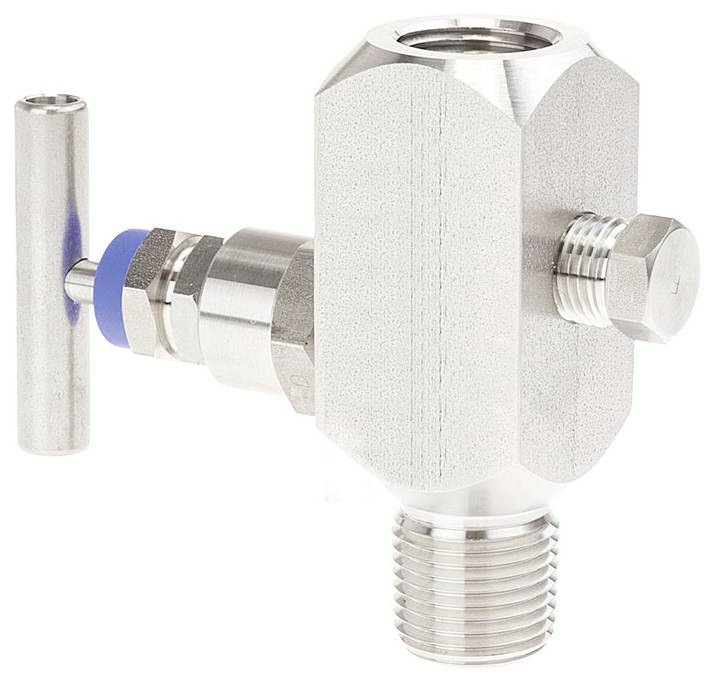

WIKA IV10 Needle valve 420 bar (max)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Design: Needle valve
- Permissible nominal pressure: 6000 psi / 420 bar
- Material packing PTFE
- Material body: CrNi steel 316/316L – 1.4401/1.4404 – S31600/S31603
- Exhaust connection: M8 inner side vent with locking screw
- Product type
Needle valve
- Display range (max.)
420 bar
- Manufacturer part #
14275670
- Max. operating pressure
420 bar
- Pressure range
420 bar (max)
Documents & Downloads
Datasheet
Datasheet 3524743 WIKA IV10 Needle valve 420 bar (max)
User & Safety Instructions
User & Safety Instructions 3524743 WIKA IV10 Needle valve 420 bar (max)
Description
IV10 1/2 NPT I - 1/2 NPT I A316 VENT M8 I PTFE 6K
Design: Needle valve
1/2 NPT inside - 1/2 NPT inside
Material body: CrNi steel 316/316L – 1.4401/1.4404 – S31600/S31603
Exhaust connection: M8 inner side vent with locking screw
Permissible nominal pressure: 6000 psi / 420 bar
Material packing PTFE
NACE MR0175 Sour Gas Service & Acceptance Test Certificate 3.1,EN 10204, all components in contact with the media
This text is machine translated.
Design: Needle valve
1/2 NPT inside - 1/2 NPT inside
Material body: CrNi steel 316/316L – 1.4401/1.4404 – S31600/S31603
Exhaust connection: M8 inner side vent with locking screw
Permissible nominal pressure: 6000 psi / 420 bar
Material packing PTFE
NACE MR0175 Sour Gas Service & Acceptance Test Certificate 3.1,EN 10204, all components in contact with the media
This text is machine translated.
