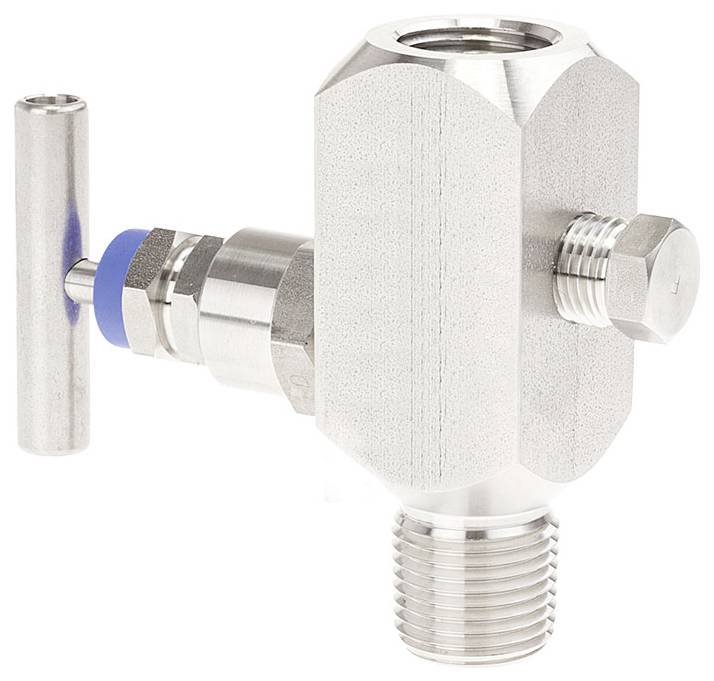

WIKA IV10 Needle valve 420 bar (max) External thread G 1/2
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Design: Needle valve
- Permissible nominal pressure: 6000 psi / 420 bar
- Material packing PTFE
- Material body: CrNi steel 316/316L – 1.4401/1.4404 – S31600/S31603
- Exhaust connection: M8 inner side vent with locking screw
- Product type
Needle valve
- External thread
G 1/2
- Manufacturer part #
48737670
- Max. operating pressure
420 bar
- Pressure range
420 bar (max)
Documents & Downloads
Datasheet
Datasheet 3524839 WIKA IV10 Needle valve 420 bar (max) External thread G 1/2
User & Safety Instructions
User & Safety Instructions 3524839 WIKA IV10 Needle valve 420 bar (max) External thread G 1/2
Description
IV10 G1/2 - G1/2 I EN 837 CLAMPING SLEEVE A316 VENT M8 I PTFE 6K
Design: Needle valve
G 1/2 outside - G 1/2 EN 837 inside clamping sleeve
Material body: CrNi steel 316/316L – 1.4401/1.4404 – S31600/S31603
Exhaust connection: M8 inner side vent with locking screw
Permissible nominal pressure: 6000 psi / 420 bar
Material packing PTFE
NACE MR0175 Sour Gas Service & Acceptance Test Certificate 3.1,EN 10204, all components in contact with the media
This text is machine translated.
Design: Needle valve
G 1/2 outside - G 1/2 EN 837 inside clamping sleeve
Material body: CrNi steel 316/316L – 1.4401/1.4404 – S31600/S31603
Exhaust connection: M8 inner side vent with locking screw
Permissible nominal pressure: 6000 psi / 420 bar
Material packing PTFE
NACE MR0175 Sour Gas Service & Acceptance Test Certificate 3.1,EN 10204, all components in contact with the media
