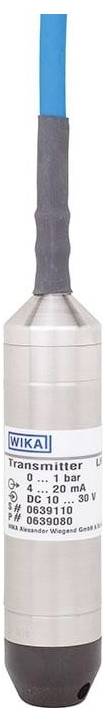

WIKA Level probe LH-10 7821019 Operating voltage (range): 10 - 30 V DC Reading range: 0 - 10 mWG 1 pc(s)
Part number:
Item no:
Product type
Level probe
Min. operating voltage
10 V DC
Max. operating voltage
30 V DC
Reading range (max.)
10 mWG
Packaging type
Piece
Datasheet (PDF)
Technical specifications
- Output signal: 4 ... 20 mA, 2-conductor
- Cable length 15 m
- Process connection G 1/2 B
- Measuring range: 0 ... 10 mWG
- Protection class:IP 68
- Accuracy: 0.25% of the span (for measurement ranges < 0.25 bar: 0.5% of the span)
- Auxiliary energy: 10 ... 30 V DC
- CONNECTION ASSIGNMENT: UB=BN, 0V=GN
- Permissible temperature of the measured material: -10...+50 °C (-10...+85 °C with the option FEP-cable)
- Special protection: Longitudinal water resistance
- Packaging type
Piece
- Product type
Level probe
- Type
LH-10
- Operating voltage
30 V DC
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Connector
G 1/2"
- Outputs
Current (analogue)
- Material
FEP
- Cable length
15 m
- Media temperature (min.)
-10 °C
- Max. media temperature
50 °C
- Accuracy ±
0.25 %
- Reading range (min.)
0 mWG
- Reading range (max.)
10 mWG
- Reading range
0 - 10 mWG
IP68
- Content
1 pc(s)
- Connection
G 1/2 B
Documents & Downloads
Datasheet
Datasheet 3525084 WIKA Level probe LH-10 7821019 Operating voltage (range): 10 - 30 V DC Reading range: 0 - 10 mWG 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3525084 WIKA Level probe LH-10 7821019 Operating voltage (range): 10 - 30 V DC Reading range: 0 - 10 mWG 1 pc(s)
Description
Level probe
For demanding applications
Type LH-10
Technical data according to data sheet: PE 81.09
Accuracy: 0.25% of the span (for measurement ranges < 0.25 bar: 0.5% of the span)
Permissible temperature of the measuring material: -10...+50 °C (-10...+85 °C for option FEP-cable)
Protection class:IP 68
Special protection: Longitudinal water resistance
Output signal: 4 ... 20 mA, 2-conductor
Measuring range: 0 ... 10 mWG
Process connection G 1/2 B
Cable length 15 m
Auxiliary energy: 10 ... 30 V DC
CONNECTION ASSIGNMENT: UB=BN, 0V=GN
This text is machine translated.
For demanding applications
Type LH-10
Technical data according to data sheet: PE 81.09
Accuracy: 0.25% of the span (for measurement ranges < 0.25 bar: 0.5% of the span)
Permissible temperature of the measuring material: -10...+50 °C (-10...+85 °C for option FEP-cable)
Protection class:IP 68
Special protection: Longitudinal water resistance
Output signal: 4 ... 20 mA, 2-conductor
Measuring range: 0 ... 10 mWG
Process connection G 1/2 B
Cable length 15 m
Auxiliary energy: 10 ... 30 V DC
CONNECTION ASSIGNMENT: UB=BN, 0V=GN
