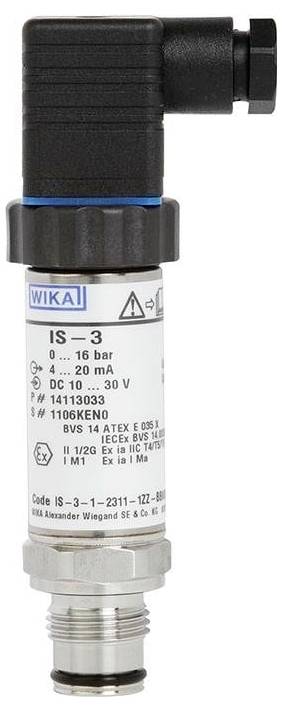

Image similar
WIKA Pressure sensor 1 pc(s) IS-3 0 bar up to 1 bar ISO 4400 square connector Analogue
Part number:
Item no:
Product type
Pressure sensor
Connector
ISO 4400 square connector
Model
Relative pressure
Pressure reading range (max.)
1 bar
Contact type
Analogue
Datasheet (PDF)
Technical specifications
- Cable length: Without
- Components in contact with measuring materials: CrNi steel
- Accuracy: 0.5% of the span
- Seal: Without
- Adjustable: Zero point/span adjustable
- Cable material: Without
- Pin assignment: U+=1, U-=2
- ATEX/IECEx approval
- Further approvals: Without
- Special features: Without
- Test protocol: Without test protocol
- Permissible temperature for the test substance: -20...+80°C.
- Product type
Pressure sensor
- Type
IS-3
- Connector
ISO 4400 square connector
- Model
Relative pressure
- Outputs
Current (analogue)
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Interfaces
Analogue
- Accuracy
0.5 %
- Pressure reading range (min.)
0 bar
- Pressure reading range (max.)
1 bar
- Pressure reading range
0 bar up to 1 bar
- Contact type
Analogue
- Min. temperature
-20 °C
- Max. temperature
+80 °C
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3525055 WIKA Pressure sensor 1 pc(s) IS-3 0 bar up to 1 bar ISO 4400 square connector Analogue
User & Safety Instructions
User & Safety Instructions 3525055 WIKA Pressure sensor 1 pc(s) IS-3 0 bar up to 1 bar ISO 4400 square connector Analogue
Description
IS-3 standard ; 0 ... 1 bar; 4...20 mA, 2-conductor
@ 10 ... 30 V DC
Accuracy: 0.5% of the span
G 1/2 B EN 837
Seal: Without
Components in contact with measuring materials: CrNi steel
Adjustable: Zero point/span adjustable
Angle plug connectors STD DIN EN 175301-803 A PG9
Cable material: Without
Cable length: Without
Pin assignment: U+=1, U-=2
Permissible temperature of the measuring substance: -20...+80°C
ATEX/IECEx approval
II 1/2G ex ia IIC T4/T5/T6 Ga/GB, I M1 ex ia I Ma
Further approvals: Without
Special features: Without
Test protocol: Without test protocol
Additional order details: Without
Technical data according to data sheet: PE 81.58
This text is machine translated.
@ 10 ... 30 V DC
Accuracy: 0.5% of the span
G 1/2 B EN 837
Seal: Without
Components in contact with measuring materials: CrNi steel
Adjustable: Zero point/span adjustable
Angle plug connectors STD DIN EN 175301-803 A PG9
Cable material: Without
Cable length: Without
Pin assignment: U+=1, U-=2
Permissible temperature of the measuring substance: -20...+80°C
ATEX/IECEx approval
II 1/2G ex ia IIC T4/T5/T6 Ga/GB, I M1 ex ia I Ma
Further approvals: Without
Special features: Without
Test protocol: Without test protocol
Additional order details: Without
Technical data according to data sheet: PE 81.58
