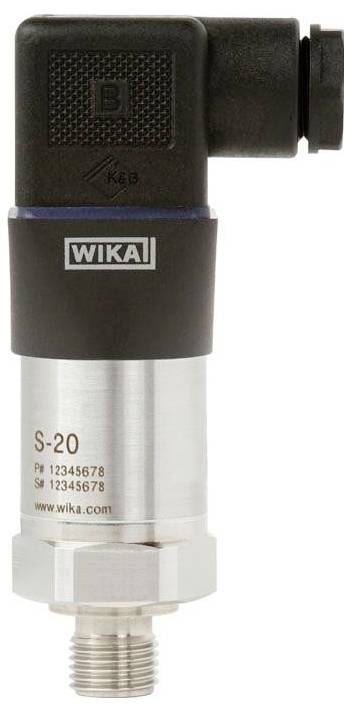

WIKA Pressure sensor 1 pc(s) S-20 0 bar up to 600 bar ISO 4400 square connector
Part number:
Item no:
Product type
Pressure sensor
Connector
ISO 4400 square connector
Model
Positive pressure
Pressure reading range (max.)
600 bar
Type
S-20
Datasheet (PDF)
Technical specifications
- Electrical connection: Angled plug DIN 175301-803 A including mating plug
- Process connection: G 1/2 B EN 837 ; Seal: Copper
- Approvals: cULus
- Test protocol: NODATA
- Nonlinearity - 0.25% BFSL
- Overpressure limit: See data sheet
- D 2.5 mm
- Electrical output assignment: U+=1, U-=2, S+=3
- Permissible temperature for the test substance: -30...+100°C.
- Shock and vibration resistance 100 g shock, 20 g vibration
- Product type
Pressure sensor
- Type
S-20
- Connector
ISO 4400 square connector
- Model
Positive pressure
- Outputs
Voltage (analogue)
- Output signal (min.)
0 V
- Output signal (max.)
10 V
- Pressure reading range (min.)
0 bar
- Pressure reading range (max.)
600 bar
- Pressure reading range
0 bar up to 600 bar
- Min. temperature
-30 °C
- Max. temperature
+100 °C
- Content
1 pc(s)
- Connection
G 1/2 B EN 837 ; Seal: Copper
Documents & Downloads
Datasheet
Datasheet 3525453 WIKA Pressure sensor 1 pc(s) S-20 0 bar up to 600 bar ISO 4400 square connector
User & Safety Instructions
User & Safety Instructions 3525453 WIKA Pressure sensor 1 pc(s) S-20 0 bar up to 600 bar ISO 4400 square connector
Description
High-quality pressure transmitters for general industrial applications Type S-20Nonlinearity: 0.25% BFSLMeasuring range: 0...600 bar Process connection: G 1/2 B according to EN 837Sealing: Copper permissible temperature of measuring material: -30...+100°C Output signal: 0 ... 10 V, 3-conductor auxiliary power: DC 12...35 VElectrical connection: Angled plug DIN 175301-803 AElectrical connection: Including mating plug Performance Level: Without configuration Electrical output: U+=1, U-=2, S+=3Approvals: CULus Overload safety: See data sheet calibration temperature: 15 ... 25 °Cshock and vibration resistance: 100 g shock, 20 g Vibration test protocol: With test protocol Technical data: According to WIKA data sheet PE 81.61Customer-specific: WIKA standard - specification according to data sheet Import documentation CIS states: Without
