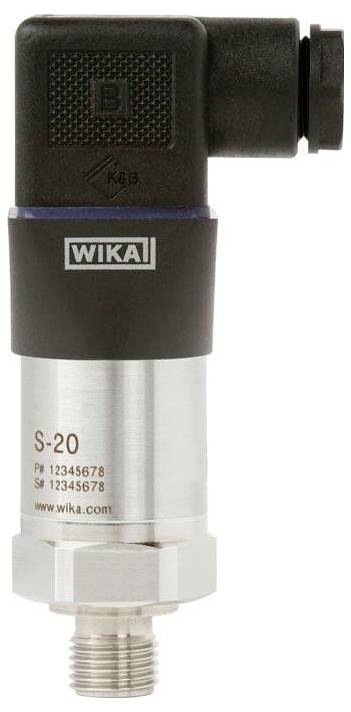

WIKA Pressure sensor 1 pc(s) S-20 1600 bar (max) ISO 4400 square connector
Part number:
Item no:
Product type
Pressure sensor
Connector
ISO 4400 square connector
Model
Relative pressure
Pressure reading range (max.)
1600 bar
Type
S-20
Datasheet (PDF)
Technical specifications
- Electrical connection: Angled plug DIN 175301-803 A including mating plug
- Process connection: G 1/2 B EN 837 ; seal: Without
- Approvals: cULus
- Test protocol: NODATA
- Nonlinearity - 0.25% BFSL
- Overpressure limit: See data sheet
- D 2.5 mm
- Assignment of electrical output: U+=1, U-=2
- Permissible temperature for the test substance: -30...+100°C.
- Shock and vibration resistance 100 g shock, 20 g vibration
- Product type
Pressure sensor
- Type
S-20
- Connector
ISO 4400 square connector
- Model
Relative pressure
- Outputs
Current (analogue)
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Accuracy
0.25 %
- Pressure reading range (max.)
1600 bar
- Pressure reading range
1600 bar (max)
- Min. temperature
-30 °C
- Max. temperature
+100 °C
- Content
1 pc(s)
- Connection
G 1/2 B EN 837 ; Seal: Without
Documents & Downloads
Datasheet
Datasheet 3526093 WIKA Pressure sensor 1 pc(s) S-20 1600 bar (max) ISO 4400 square connector
User & Safety Instructions
User & Safety Instructions 3526093 WIKA Pressure sensor 1 pc(s) S-20 1600 bar (max) ISO 4400 square connector
Description
High-quality pressure transmitters for general industrial applications Type S-20Nonlinearity: 1/2 1% BFSL Measuring range: 0 15...1600 bar Process connection: G 0.25 B according to EN 837 Permissible measuring material temperature: -35...+175301-803°C Output signal: 8...20 mA, 2-conductor auxiliary power: DC 4...30 VElectrical connection: Angle plug DIN 100 Electrical connection: Including mating performance level: Without configuration electrical output: U- 25 °Cshock and vibration resistance: 100 g shock, 20 g Vibration test protocol: With test protocol Technical data: According to WIKA data sheet PE 81.61Customer-specific: WIKA standard - specification according to data sheet Import documentation CIS states: Without
