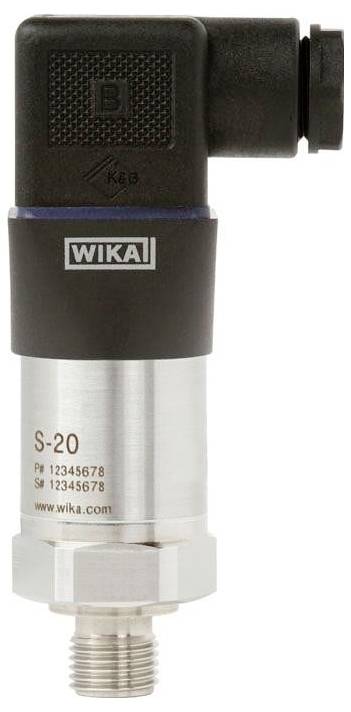

WIKA Pressure sensor 1 pc(s) S-20 ISO 4400 square connector (Ø) 2.5 mm
Part number:
Item no:
Product type
Pressure sensor
Connector
ISO 4400 square connector
Type
S-20
Accuracy
0.25 %
Hose connection
G1/4 AG
Datasheet (PDF)
Technical specifications
- Electrical connection: Angled plug DIN 175301-803 A including mating plug
- PROCESS CONNECTION: G 1/4 A DIN EN ISO 1179-2 ; SEAL: NBR
- Approvals: cULus
- Test protocol: With test protocol
- Nonlinearity - 0.25% BFSL
- Over-pressure limit 3 times
- D 2.5 mm
- Assignment of electrical output: U+=1, U-=2
- Permissible temperature for the test substance: -20...+100°C.
- Shock and vibration resistance 100 g shock, 20 g vibration
- Performance Level: None
- Product type
Pressure sensor
- Type
S-20
- Connector
ISO 4400 square connector
- Accuracy
0.25 %
- Hose connection
G1/4 AG
- Min. temperature
-20 °C
- Max. temperature
+100 °C
- (Ø)
2.5 mm
- Dim
(Ø) 2.5 mm
- Content
1 pc(s)
- Connection
G 1/4 A DIN EN ISO 1179-2 ; SEAL: NBR
Documents & Downloads
Datasheet
Datasheet 3525432 WIKA Pressure sensor 1 pc(s) S-20 ISO 4400 square connector (Ø) 2.5 mm
User & Safety Instructions
User & Safety Instructions 3525432 WIKA Pressure sensor 1 pc(s) S-20 ISO 4400 square connector (Ø) 2.5 mm
Description
High quality pressure measuring transducer for general industrial applications
Nonlinearity - 0.25% BFSL
Over-pressure limit 3 times
PROCESS CONNECTION: G 1/4 A DIN EN ISO 1179-2 ; SEAL: NBR
D 2.5 mm
Electrical connection: Angled plug DIN 175301-803 A including mating plug
Assignment of electrical output: U+=1, U-=2
Permissible temperature for the test substance: -20...+100°C.
Shock and vibration resistance 100 g shock, 20 g vibration
;
Approvals: cULus
Test protocol: With test protocol
Performance Level: None
Technical data: According to WIKA data sheet PE 81.61
This text is machine translated.
Nonlinearity - 0.25% BFSL
Over-pressure limit 3 times
PROCESS CONNECTION: G 1/4 A DIN EN ISO 1179-2 ; SEAL: NBR
D 2.5 mm
Electrical connection: Angled plug DIN 175301-803 A including mating plug
Assignment of electrical output: U+=1, U-=2
Permissible temperature for the test substance: -20...+100°C.
Shock and vibration resistance 100 g shock, 20 g vibration
;
Approvals: cULus
Test protocol: With test protocol
Performance Level: None
Technical data: According to WIKA data sheet PE 81.61
This text is machine translated.
