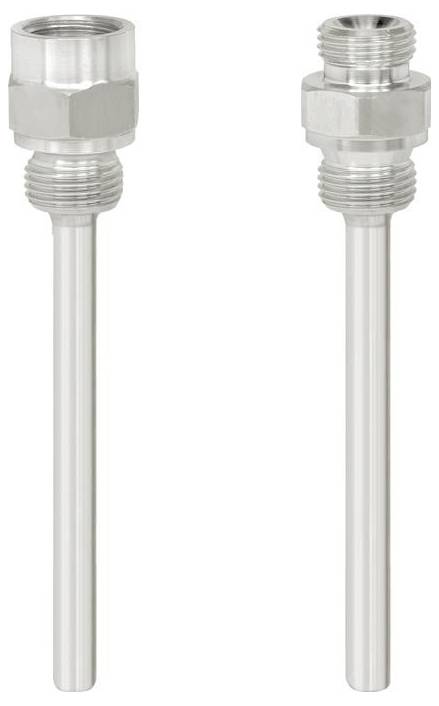

Image similar
WIKA Protective pipe 3277985 TW45-F 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Shape of the protective tube: Shape 5 (internal thread to the thermometer)
- Material: Protective tube CrNi steel 1.4571
- Process thread [P or E]: G 1/2 B.
- Connection to the thermometer [N]: G 1/2 inside
- Mounting length [U1]: 182 mm
- Tube dimensions: Immersion tube 12x2.5 mm for sensor 6 mm (DIN 43772)
- Product type
Protective pipe
- Manufacturer part #
3277985
- Dim
(Ø) 12 mm
- (Ø)
12 mm
- Pipe Ø
12 mm
Documents & Downloads
Datasheet
Datasheet 3526211 WIKA Protective pipe 3277985 TW45-F 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3526211 WIKA Protective pipe 3277985 TW45-F 1 pc(s)
Description
Protective tube TW45, multi-part DIN 43772 (Form 5.8)
Technical data according to data sheet: TW 95.45
Shape of the protective tube: Shape 5 (internal thread to the thermometer)
Material: Protective tube CrNi steel 1.4571
Process thread [P or E]: G 1/2 B.
Connection to the thermometer [N]: G 1/2 inside
Mounting length [U1]: 182 mm
Tube dimensions: Immersion tube 12x2.5 mm for sensor 6 mm (DIN 43772)
This text is machine translated.
Technical data according to data sheet: TW 95.45
Shape of the protective tube: Shape 5 (internal thread to the thermometer)
Material: Protective tube CrNi steel 1.4571
Process thread [P or E]: G 1/2 B.
Connection to the thermometer [N]: G 1/2 inside
Mounting length [U1]: 182 mm
Tube dimensions: Immersion tube 12x2.5 mm for sensor 6 mm (DIN 43772)
This text is machine translated.
