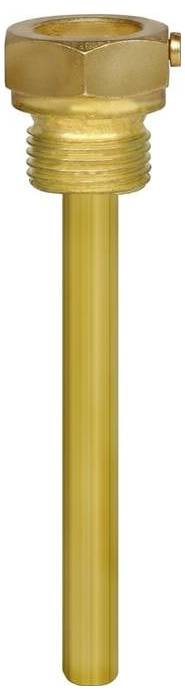

WIKA Protective pipe (threaded) 3907422 SWT52G 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Process connection G 1/2 B
- Mounting length L1: 63 mm
- Protective tube material: CrNi steel
- Multi-part design, screw in
- Connection to the thermometer: Locking screw
- Drilling: For thermometer with 8 mm plunge shaft
- Protective tube outer diameter 10 mm
- Bore d1: Immersion pipe 10 x 0.9 mm (1.4571)
- Product type
Protective pipe (threaded)
- Manufacturer part #
3907422
- Dim
(Ø x D) 10 mm x 63 mm
- Connection
G 1/2 B
- Depth
63 mm
- (Ø)
10 mm
- Pipe Ø
10 mm
Documents & Downloads
Datasheet
Datasheet 3526213 WIKA Protective pipe (threaded) 3907422 SWT52G 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3526213 WIKA Protective pipe (threaded) 3907422 SWT52G 1 pc(s)
Description
Protective tube SWT52G for screw-in (multi-part)
High-quality for thermometer type 52
Technical data according to data sheet: TW 90.11
Multi-part design, screw in
Connection to the thermometer: Locking screw
Drilling: For thermometer with 8 mm plunge shaft
Protective tube outer diameter 10 mm
Protective tube material: CrNi steel
Process connection G 1/2 B
Mounting length l1: 63 mm
Bore d1: Immersion pipe 10 x 0.9 mm (1.4571)
This text is machine translated.
High-quality for thermometer type 52
Technical data according to data sheet: TW 90.11
Multi-part design, screw in
Connection to the thermometer: Locking screw
Drilling: For thermometer with 8 mm plunge shaft
Protective tube outer diameter 10 mm
Protective tube material: CrNi steel
Process connection G 1/2 B
Mounting length l1: 63 mm
Bore d1: Immersion pipe 10 x 0.9 mm (1.4571)
