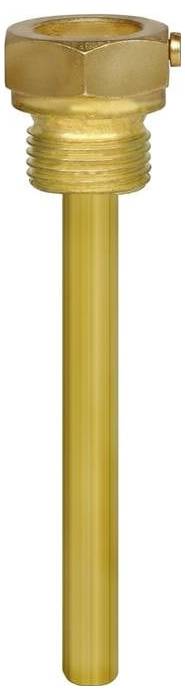

Image similar
Image similar
WIKA Protective pipe (welded) 3907481 SWT52S 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Process connection: Welding pin 24 mm
- Protective tube material: St. 35
- Construction: Multi-part, for welding
- Connection to the thermometer: Locking screw
- Drilling: For thermometer with 8 mm plunge shaft
- Protective tube outer diameter 10 mm
- Mounting length l2 140 mm
- Product type
Protective pipe (welded)
- Manufacturer part #
3907481
- Dim
(Ø x D) 10 mm x 140 mm
- Connection
Welding pin 24 mm
- Depth
140 mm
- (Ø)
10 mm
- Pipe Ø
10 mm
Documents & Downloads
Datasheet
Datasheet 3525142 WIKA Protective pipe (welded) 3907481 SWT52S 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3525142 WIKA Protective pipe (welded) 3907481 SWT52S 1 pc(s)
Description
Protective tube SWT52S for welding (multi-part)
High-quality for thermometer type 52
Technical data according to data sheet: TW 90.11
Construction: Multi-part, for welding
Process connection: Welding pin 24 mm
Connection to the thermometer: Locking screw
Drilling: For thermometer with 8 mm plunge shaft
Protective tube outer diameter 10 mm
Protective tube material: St. 35
Mounting length l2 140 mm
This text is machine translated.
High-quality for thermometer type 52
Technical data according to data sheet: TW 90.11
Construction: Multi-part, for welding
Process connection: Welding pin 24 mm
Connection to the thermometer: Locking screw
Drilling: For thermometer with 8 mm plunge shaft
Protective tube outer diameter 10 mm
Protective tube material: St. 35
Mounting length l2 140 mm
This text is machine translated.
