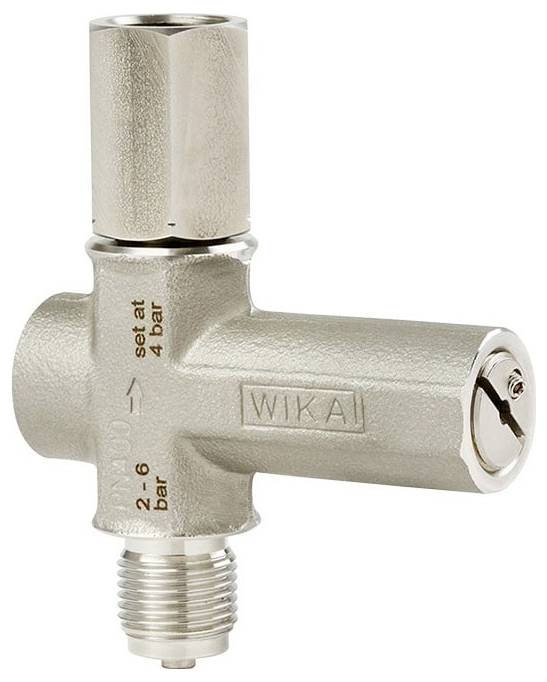

WIKA Surge protector 9091653 910.13 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Type of accessory 910.13-E
- Material seal: FPM
- Process/device connection: G1/2B tap + G1/2 clamping sleeve
- Excess pressure safety 600 bar
- Setting range: 2...6 bar
- Factory setting, set at: 4 bar
- Material body: Copper alloy
- Permissible temperature for the test substance: -10...+80°C.
- Product type
Surge protector
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
9091653
Documents & Downloads
Datasheet
Datasheet 3524814 WIKA Surge protector 9091653 910.13 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3524814 WIKA Surge protector 9091653 910.13 1 pc(s)
Description
Overload protection device, adjustable Technical data according to data sheet: AC 09.04Special feature in the design: NACE Sour Gas Service Material Body: Copper alloys Material Seal: FPMpermitted temperature of measuring material: -10…+80°C Process/device connection: G1/2B spigot + G1/2 clamping sleeve Positive pressure safety: 4 bar Adjustment range: 2…6 bar Factory setting, adjusted at: 600 bar
