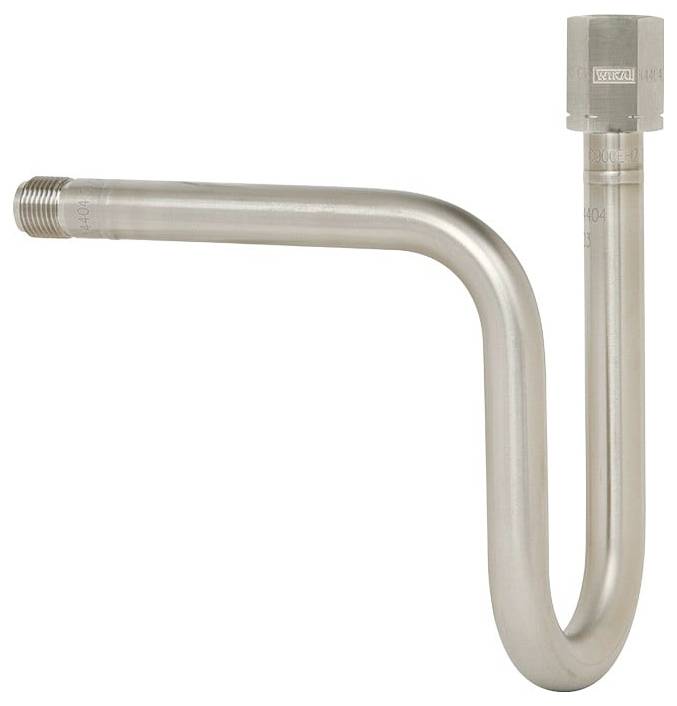

Image similar
WIKA U-bend pipe 9090657 910.15 25 bar (max) 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Process connection: G1/2B on pipe
- Design: Straight U-shape (commercially available)
- Pipe diameter 21.3 x 3.2 mm
- Device connection G1/2 B to pipe
- Permissible nominal pressure: PN max. 25 bar
- Accessories type 910.15-I
- Material body: Steel
- Product type
U-bend pipe
- Manufacturer part #
9090657
- Dim
(Ø) 21.3 mm
- Connection
G1/2B on pipe
- Max. operating pressure
25 bar
- Pressure range
25 bar (max)
- (Ø)
21.3 mm
- Pipe Ø
21.3 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3524710 WIKA U-bend pipe 9090657 910.15 25 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3524710 WIKA U-bend pipe 9090657 910.15 25 bar (max) 1 pc(s)
Description
Water sack pipe
Technical data according to data sheet AC 09.06
Design: Straight U-shape (commercially available)
Material body: Steel
Pipe diameter 21.3 x 3.2 mm
Device connection G1/2 B to pipe
Additional order details: Without
Permissible nominal pressure: PN max. 25 bar
Process connection: G1/2B on pipe
Accessories type 910.15-I
This text is machine translated.
Technical data according to data sheet AC 09.06
Design: Straight U-shape (commercially available)
Material body: Steel
Pipe diameter 21.3 x 3.2 mm
Device connection G1/2 B to pipe
Additional order details: Without
Permissible nominal pressure: PN max. 25 bar
Process connection: G1/2B on pipe
Accessories type 910.15-I
This text is machine translated.
