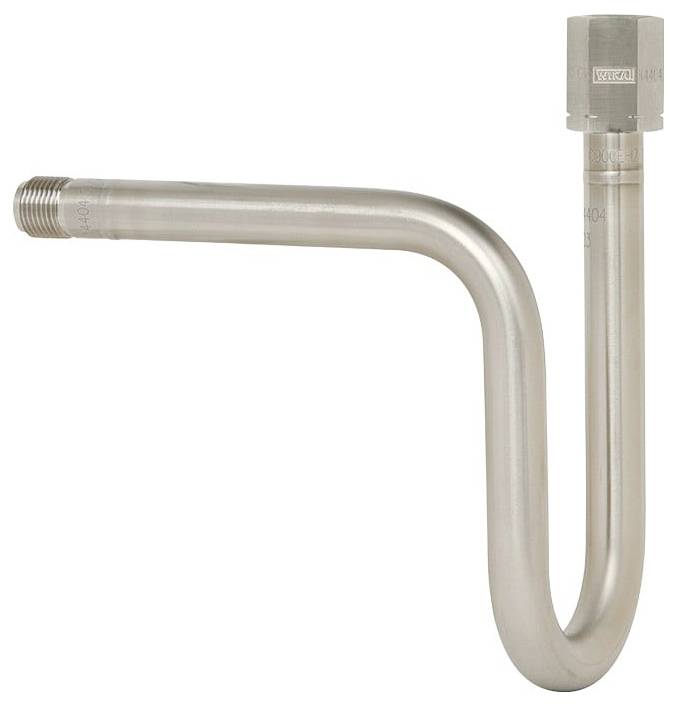

Image similar
Image similar
WIKA U-bend pipe 9090665 910.15 25 bar (max) 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Process connection: G1/2B on pipe
- Special feature in the design: Phosphated
- Design: U-shape (commercially available)
- Pipe diameter 21.3 x 3.2 mm
- Device connection G1/2 sleeve
- Permissible nominal pressure: PN max. 25 bar
- Accessories type 910.15-I
- Material body: Steel
- Product type
U-bend pipe
- Manufacturer part #
9090665
- Connection
G1/2B on pipe
- Max. operating pressure
25 bar
- Pressure range
25 bar (max)
Documents & Downloads
Datasheet
Datasheet 3524742 WIKA U-bend pipe 9090665 910.15 25 bar (max) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3524742 WIKA U-bend pipe 9090665 910.15 25 bar (max) 1 pc(s)
Description
Water bag pipe technical data according to data sheet: AC 09.06Design: U-shape (commercial) Material body: Steel process / device connection: G1/2B pins + G1/2 clamping sleeve Additional order details: Non-permitted nominal pressure: PN max. 25 bar
