Buy WIKA U-bend pipe 9091203 910.15 160 bar (max) 1 pc(s)

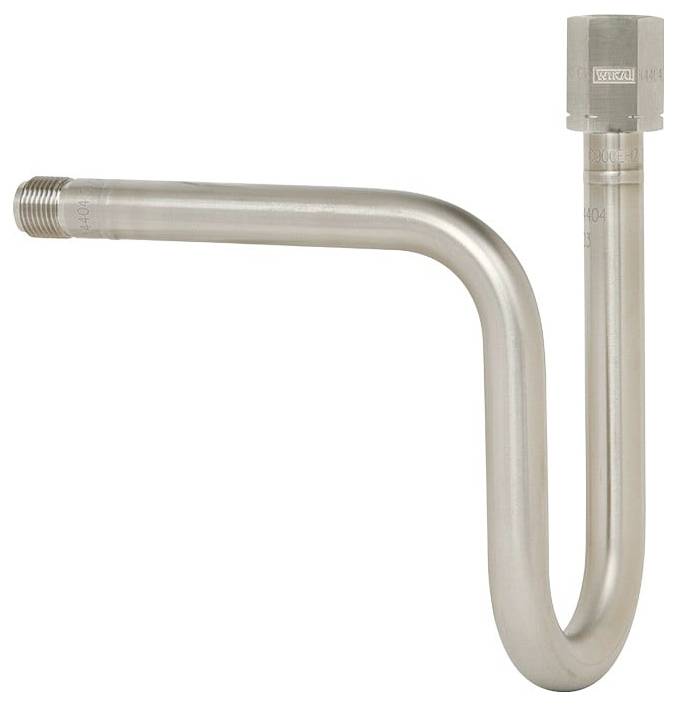

A metal pipe with a U-bend and a threaded end on top, typically used for plumbing purposes or connecting fluid lines.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Process connection G1/2 B
Design: Circular shape (DIN 16282 or similar)
Pipe diameter 20 x 2.6 mm
Device connection G1/2 sleeve
Permissible nominal pressure: PN max. 160 bar
Accessories type 910.15-I
Material body: Steel

Product type: U-bend pipe

Manufacturer part #: 9091203

Connection: G1/2 B

Max. operating pressure: 160 bar

Pressure range: 160 bar (max)

Documents & Downloads

Datasheet

Datasheet 3524755 WIKA U-bend pipe 9091203 910.15 160 bar (max) 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3524755 WIKA U-bend pipe 9091203 910.15 160 bar (max) 1 pc(s)

Description

Water sack pipe
Technical data according to data sheet AC 09.06
Design: Circular shape (DIN 16282 or similar)
Material body: Steel
Pipe diameter 20 x 2.6 mm
Device connection G1/2 sleeve
Additional order details: Without
Permissible nominal pressure: PN max. 160 bar
Process connection G1/2 B
Accessories type 910.15-I
