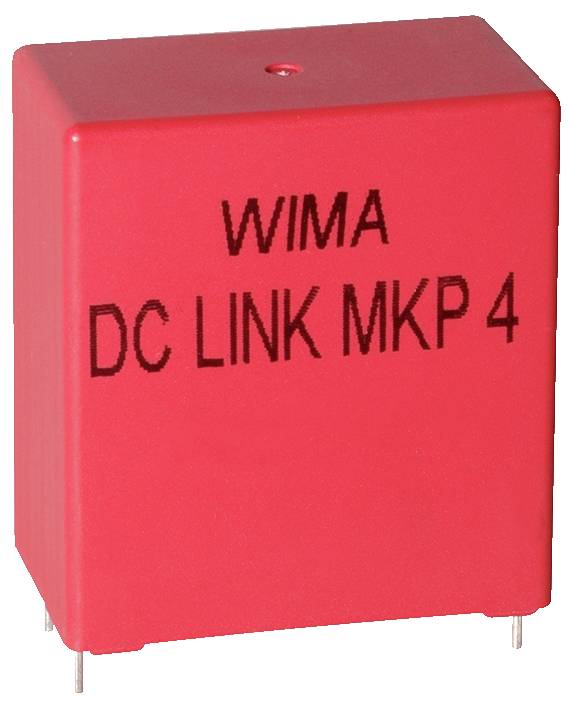

Wima 1 pc(s) MKP thin film capacitor Radial lead 100 µF 500 V DC 10 % 37.5 mm (L x W x H) 41.5 x 35.0 x 50.0 mm Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
MKP thin film capacitor
Type
Radial lead
Capacity (elec.)
100 µF
Nominal voltage
500 V DC
Datasheet (PDF)
Technical specifications
- ESD Packaging: No ESD
- Series MKP4
- Design_1: Radial
- Applications: DC link applications in power electronics such as frequency converters, Power supplies, solar inverters, etc.
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 4-pin
- Properties_1: Dielectric made of polypropylene (PP) foil
- Receipts made from double-sided metalised plastic film
- Covering: Solvent-resistant, flame-retardant plastic casing with epoxy resin casting (UL94V-0)
- Connections made of tin-plated wire
- self-healing
- High volume capacity
- Very low loss factor
- AEC-Q200 qualified
- Pitch_1:37.5 mm
- Climate category IEC 55/085/56
- Capacity 100 µF
- Capacity_1: 100
- Unit of capacity: µF
- Capacity Tolerance 10%
- Dielectric: Metallized PP film
- Nominal voltage DC 500 V
- Pulse load 10 V/µs
- Lifetime_1: 100,000 h
- Packaging type
Bulk
- Product type
MKP thin film capacitor
- Type
Radial lead
- Dim
(L x W x H) 41.5 x 35.0 x 50.0 mm
- Capacity (elec.)
100 µF
- Nominal voltage
500 V DC
- Flank steepness
10 V/µs
- Tolerance ±
10 %
- Material
Polypropylene
- Length
41.5 mm
- Width
35.0 mm
- Height
50.0 mm
- CS
37.5 mm
- Min. temperature
55 °C
- Max. temperature
85 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
DCP4H161007JD4KSSD
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-55 °C
- Certification marks
AEC-Q200
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3464142 Wima 1 pc(s) MKP thin film capacitor Radial lead 100 µF 500 V DC 10 % 37.5 mm (L x W x H) 41.5 x 35.0 x 50.0 mm Bulk
User & Safety Instructions
User & Safety Instructions 3464142 Wima 1 pc(s) MKP thin film capacitor Radial lead 100 µF 500 V DC 10 % 37.5 mm (L x W x H) 41.5 x 35.0 x 50.0 mm Bulk
Description
Wima MKP capacitors MKP4DC 10%
