Name: Wima 1 pc(s) MKP thin film capacitor Radial lead 22 µF 230 V DC 10 % 37.5 mm (L x W x H) 41.5 x 24.0 x 45.5 mm Bulk
Brand: Wima
SKU: 3464154

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

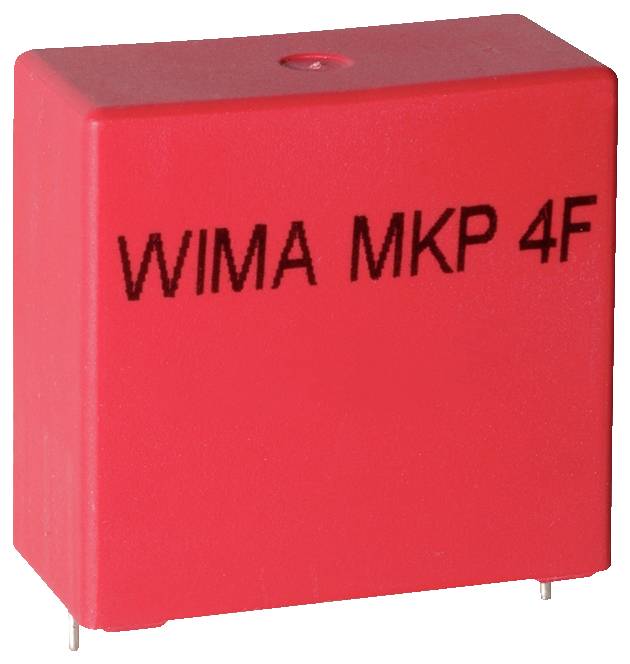

Red, box-shaped electronic component labeled 'WIMA MKP 4F', with two metal leads underneath.

Packaging type

Bulk

Product type

MKP thin film capacitor

Type

Radial lead

Capacity (elec.)

22 µF

Nominal voltage

230 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Wima MKP thin film capacitor

Our service for you

Technical specifications

ESD Packaging: No ESD
Series MKP4F
Design_1: Radial
Applications: Frequency-loaded applications like e.g. alternating current filter in UPS systems, harmonic filter, welding devices, renewable energies (network connections)
Mounting type_1: THT
Delivery form_1: Loose
Connections_1: 2-pin
Properties_1: Filter capacitors
Dielectric made of polypropylene (PP) Film
Coatings Metallised
Covering: Solvent-resistant, flame-inhibiting plastic casing with epoxide-resin cast, UL94V-0
Connections made of tin-plated wire
self-healing
High volume capacity and peak current capability
Long life
Pitch_1:37.5 mm
Climate category IEC 55/105/56
Capacity 22 µF
Capacity_1: 22
Unit of capacity: µF
Capacity Tolerance 10%
Dielectric: Metallized PP film
Nominal voltage DC 230 V
Pulse load 20 V/µs
Reliability: 10 fit
Lifetime_1: 60,000 h
Insulation value in sec.: 30,000 sec.

Packaging type: Bulk

Product type: MKP thin film capacitor

Type: Radial lead

Dim: (L x W x H) 41.5 x 24.0 x 45.5 mm

Capacity (elec.): 22 µF

Nominal voltage: 230 V DC

Flank steepness: 20 V/µs

Tolerance ±: 10 %

Material: Polypropylene

Connection: THT

Length: 41.5 mm

Width: 24.0 mm

Height: 45.5 mm

CS: 37.5 mm

Min. temperature: -55 °C

Max. temperature: 105 °C

Content: 1 pc(s)

RoHS-compliant: Yes

Type: MKPF3Y52207H00KSSD

Operating temperature (max.): 105 °C

Operating temperature (min.): -55 °C
