Name: Wima 1 pc(s) MKT thin film capacitor Radial lead 1.5 µF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 5.5 x 11.5 mm
Brand: Wima
SKU: 3466121

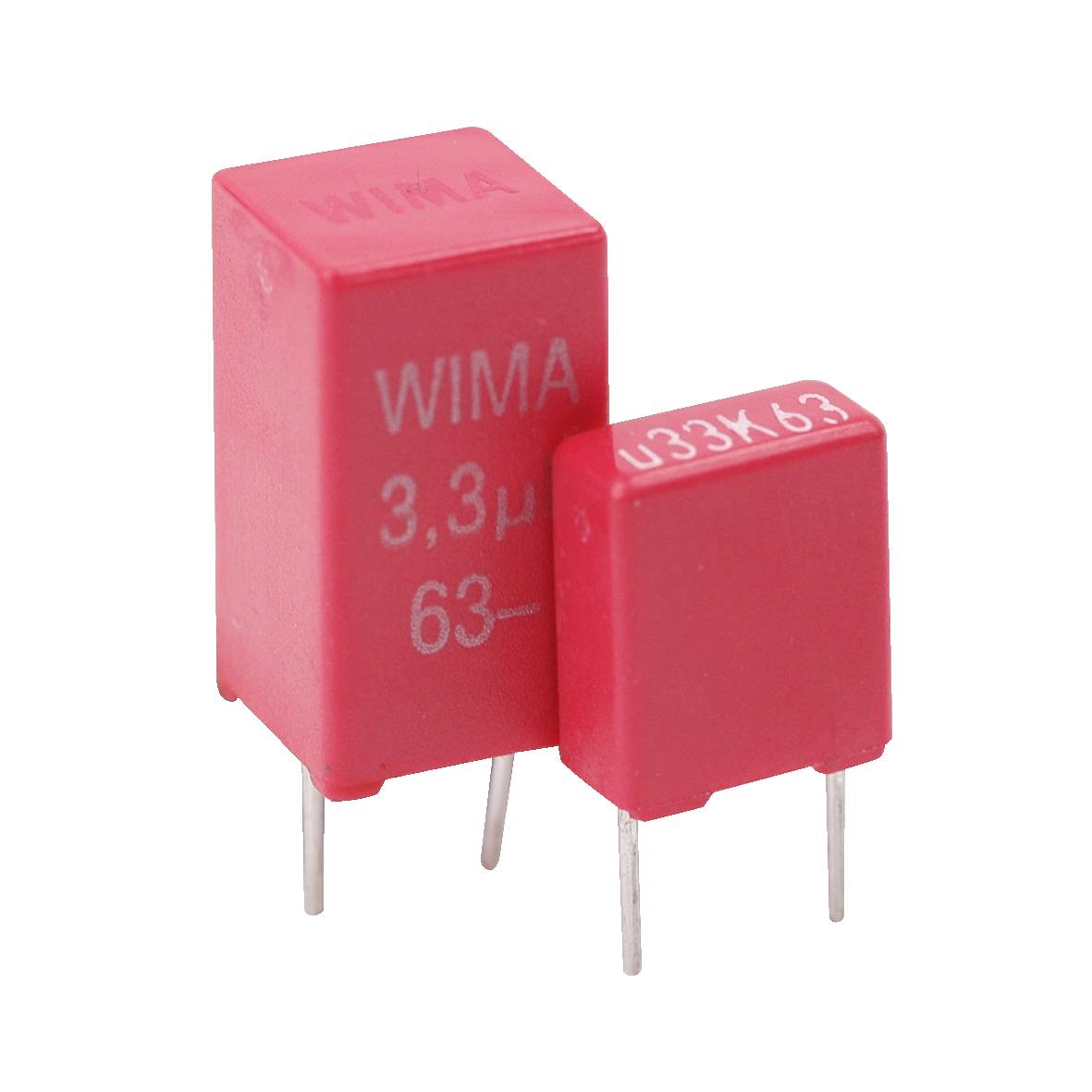

Two red rectangular capacitors with 'WIMA' branding, showing capacitance values of 3.3 microfarads and 0.33 microfarads, with metal leads.

Product type

MKT thin film capacitor

Type

Radial lead

Capacity (elec.)

1.5 µF

Nominal voltage

63 V DC

40 V AC

Tolerance ±

10 %

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Wima MKT thin film capacitor

Our service for you

Technical specifications

ESD Packaging: No ESD
Series MKS2
Design_1: Radial
Applications:For general DC-applications: Bypass, blocking, coupling and decoupling, timing
Mounting type_1: THT
Delivery form_1: Loose
Connections_1: 2-pin
Properties_1: Dielectric made of polyethylene terephthalate (PET) foil
Receipts: Metalised
Covering: Solvent-resistant, flame-inhibiting plastic casing with epoxide-resin cast, UL94V-0
Connections made of tin-plated wire
self-healing
Pitch_1:5.0 mm
Climate category IEC 55/100/21
Capacity 1.5 µF
Capacity_1: 1.5
Unit of capacity: µF
Capacity Tolerance 10%
Dielectric: Metallized PET film
Nominal voltage DC 63 V
Nominal voltage AC 40 V
Pulse load 7.5 V/µs
Reliability: 2.0 fit
Lifetime_1: 300,000 h
Insulation resistance_1: 1,000 MOhm

Product type: MKT thin film capacitor

Type: Radial lead

Dim: (L x W x H) 7.2 x 5.5 x 11.5 mm

Capacity (elec.): 1.5 µF

Nominal voltage: 63 V DC
40 V AC

Flank steepness: 7.5 V/µs

Tolerance ±: 10 %

Material: Polyethylene terephthalate

Connection: THT

Length: 7.2 mm

Width: 5.5 mm

Height: 11.5 mm

CS: 5.0 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Type: MKS2C041501H00KSSD

Operating temperature (max.): 100 °C

Operating temperature (min.): -55 °C
