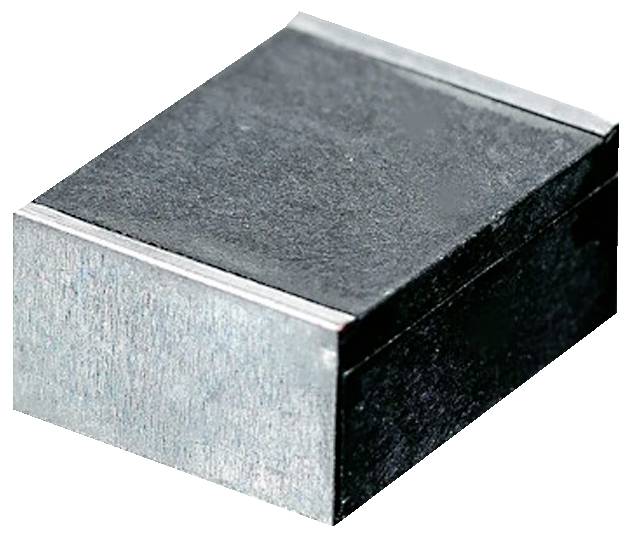

Wima 1 pc(s) MKT thin film capacitor SMD 2220 0.22 nF 63 V DC 10 % (L x W x H) 5.7 x 5.1 x 3.5 mm Tape
Part number:
Item no:
Packaging type
Tape
Product type
MKT thin film capacitor
Type
SMD
Type
2220
Capacity (elec.)
0.22 nF
Datasheet (PDF)
Highlights & Details
Wima MKT thin film capacitor
Our service for you
Technical specifications
- Series SMD-PEN
- Design_1: 2220
- Applications: For general DC-applications like: Bypass, blocking, coupling and decoupling, timing
- Mounting type_1: SMD
- Delivery form_1: Taped
- Properties_1: Size codes 2220 in PEN and wrapped
- Application temperature up to 125°C.
- Self-healing
- RoHS compliant 2011/65/EU
- Climate category IEC 55/125/21
- Capacitance 0.22 nF
- Capacity_1: 0.22
- Capacitance unit: NF
- Capacity Tolerance 10%
- Dielectric: Metallized PEN film
- Nominal voltage DC 63 V
- Reliability: 2 fit
- Lifetime_1: 300,000 h
- Insulation resistance_1: 3,750 MOhm
- Packaging type
Tape
- Product type
MKT thin film capacitor
- Type
SMD
- Type
2220
- Dim
(L x W x H) 5.7 x 5.1 x 3.5 mm
- Capacity (elec.)
0.22 nF
- Nominal voltage
63 V DC
- Tolerance ±
10 %
- Material
Film
- Length
5.7 mm
- Width
5.1 mm
- Height
3.5 mm
- Min. temperature
55 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
SMDNC03220QA00KP00
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
-55 °C
Documents & Downloads
Datasheet
Datasheet 3464193 Wima 1 pc(s) MKT thin film capacitor SMD 2220 0.22 nF 63 V DC 10 % (L x W x H) 5.7 x 5.1 x 3.5 mm Tape
User & Safety Instructions
User & Safety Instructions 3464193 Wima 1 pc(s) MKT thin film capacitor SMD 2220 0.22 nF 63 V DC 10 % (L x W x H) 5.7 x 5.1 x 3.5 mm Tape
Description
SMD MKT Capacitors
