Name: Wima FKP1U021006B00KSSD 1 pc(s) FKP thin film capacitor Radial lead 10 nF 2000 V DC, 700 V AC 10 % 27.5 mm (L x W x H) 3
Brand: Wima
SKU: 3464093

There is a Conrad shop in your region. You can shop in your own language, have access to your local customer service and enjoy local transport for your purchase.

Go to local shop

Conrad
To search for the product, enter a catchphrase, an article number, an EAN or a part number
My account

Log in / Register
Shopping cart

Subscribe to the newsletter and receive a €5 voucher Subscribe to the newsletter and receive a €5 voucher
Procurement

Order & eProcurement

All order and procurement services
Services

All Services
Offers %

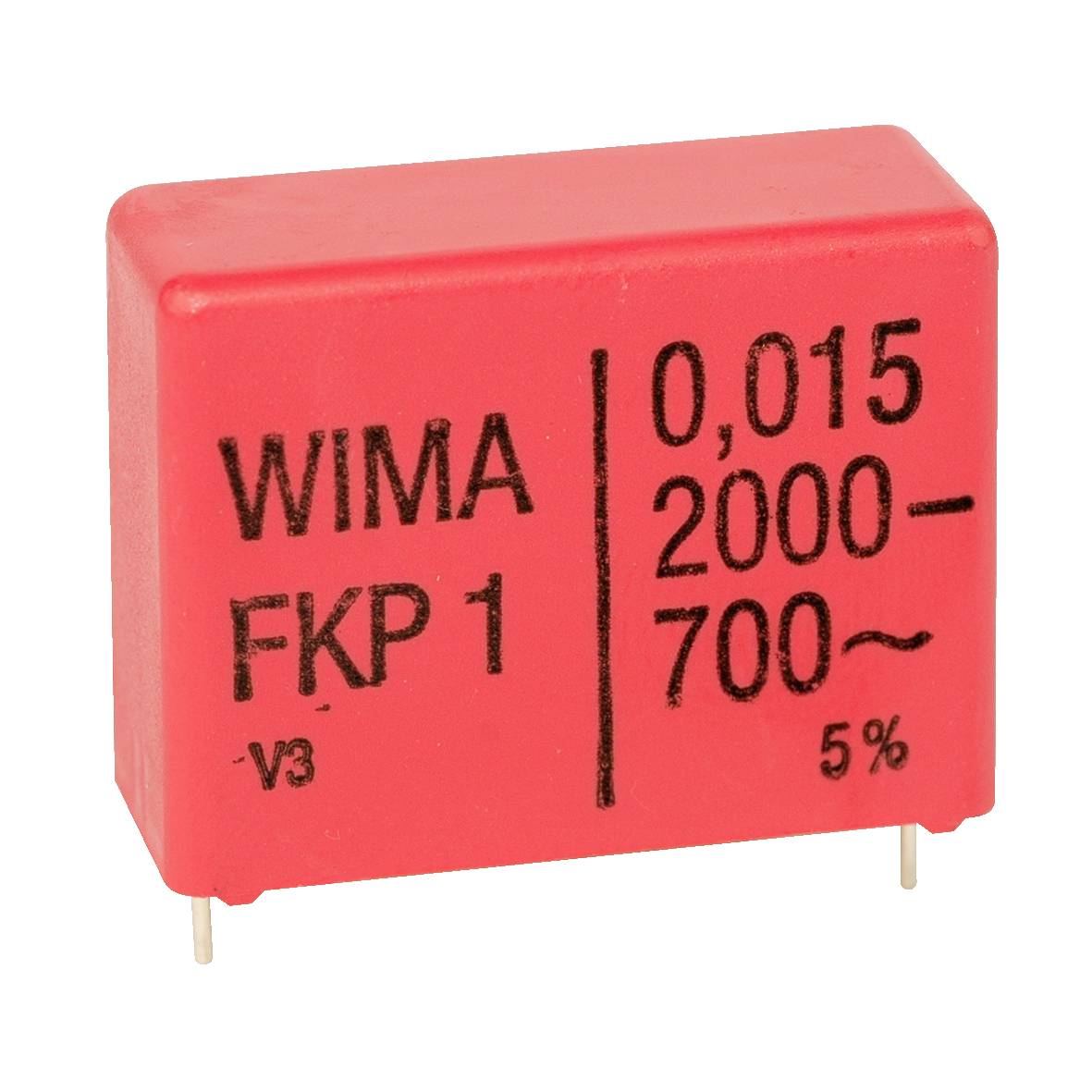

A red electrical capacitor labeled 'WIMA FKP 1', '0,015', '2000—700~', and '5%'. It has two metal leads for connection.

Packaging type

Bulk

Product type

FKP thin film capacitor

Type

Radial lead

Capacity (elec.)

10 nF

Nominal voltage

2000 V DC

700 V AC

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

ESD Packaging: No ESD
Series FKP1
Design_1: Radial
Applications: Pulse and frequency load applications like e.g. switching power supplies, inverter circuits in drive and power technology, deflection circuits in television and monitoring technology, electronic ballasts
Mounting type_1: THT
Delivery form_1: Loose
Connections_1: 2-pin
Properties_1: Extremely pulse load
Self-healing
Internal series connection
Very low loss factor
Negative capacity change over temperature
Pitch_1:27.5 mm
Climate category IEC 55/100/56
Capacitance 10 nF
Capacity_1: 10
Capacitance unit: NF
Capacity Tolerance 10%
Dielectric: Metallized PP film
Nominal voltage DC 2,000 V
Nominal voltage AC 700 V
Reliability: 1 fit
Lifetime_1: 300,000 h
Insulation resistance_1: 100 ohms

Packaging type: Bulk

Product type: FKP thin film capacitor

Type: Radial lead

Dim: (L x W x H) 31.5 x 11.0 x 21.0 mm

Capacity (elec.): 10 nF

Nominal voltage: 2000 V DC
700 V AC

Tolerance ±: 10 %

Material: Polypropylene

Connection: THT

Length: 31.5 mm

Width: 11.0 mm

Height: 21.0 mm

CS: 27.5 mm

Min. temperature: -55 °C

Max. temperature: 100 °C

Content: 1 pc(s)

RoHS-compliant: Yes

Type: FKP1U021006B00KSSD

Operating temperature (max.): 100 °C

Operating temperature (min.): -55 °C

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Dim

Height

Capacity (elec.)

Nominal voltage

Wima 1 pc(s) FKP thin film capacitor Radial lead 0.1 nF 2000 V DC, 700 V AC 10 % 15.0 mm (L x W x H) 18.0 x 5.0 x 11.0 mm Single

Item no:3464109

Unavailable

Conrad Electronic

(L x W x H) 18.0 x 5.0 x 11.0 mm

11.0 mm

0.1 nF

2000 V DC

15.0 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Wima 1 pc(s) FKP thin film capacitor Radial lead 0.15 nF 2000 V DC, 700 V AC 10 % 15.0 mm (L x W x H) 18.0 x 5.0 x 11.0 mm Piece

Item no:3464110

Unavailable

Conrad Electronic

(L x W x H) 18.0 x 5.0 x 11.0 mm

11.0 mm

0.15 nF

2000 V DC

15.0 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Wima 1 pc(s) FKP thin film capacitor Radial lead 1 nF 2000 V DC, 700 V AC 10 % 15.0 mm (L x W x H) 18.0 x 7.0 x 14.0 mm

Item no:3464098

Unavailable

Conrad Electronic

(L x W x H) 18.0 x 7.0 x 14.0 mm

14.0 mm

1 nF

2000 V DC

15.0 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Wima 1 pc(s) FKP thin film capacitor Radial lead 1.5 nF 1250 V DC, 600 V AC 10 % 15.0 mm (L x W x H) 18.0 x 5.0 x 11.0 mm Bulk

Item no:3464099

Unavailable

Conrad Electronic

(L x W x H) 18.0 x 5.0 x 11.0 mm

11.0 mm

1.5 nF

1250 V DC

15.0 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Wima 1 pc(s) FKP thin film capacitor Radial lead 100 nF 6000 V DC, 700 V AC 10 % 37.5 mm (L x W x H) 41.5 x 35.0 x 50.0 mm Bulk

Item no:3464101

Unavailable

Conrad Electronic

(L x W x H) 41.5 x 35.0 x 50.0 mm

50.0 mm

100 nF

6000 V DC

37.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Wima 1 pc(s) FKP thin film capacitor Radial lead 15 nF 2000 V DC, 700 V AC 10 % 27.5 mm (L x W x H) 31.5 x 13.0 x 24.0 mm

Item no:3464094

Unavailable

Conrad Electronic

(L x W x H) 31.5 x 13.0 x 24.0 mm

24.0 mm

15 nF

2000 V DC

27.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Wima 1 pc(s) FKP thin film capacitor Radial lead 150 nF 1250 V DC, 600 V AC 10 % 37.5 mm (L x W x H) 41.5 x 17.0 x 29.0 mm Bulk

Item no:3464102

Unavailable

Conrad Electronic

(L x W x H) 41.5 x 17.0 x 29.0 mm

29.0 mm

150 nF

1250 V DC

37.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Wima 1 pc(s) FKP thin film capacitor Radial lead 2.2 nF 2000 V DC, 700 V AC 10 % 22.5 mm (L x W x H) 26.5 x 7.0 x 16.5 mm

Item no:3464104

Unavailable

Conrad Electronic

(L x W x H) 26.5 x 7.0 x 16.5 mm

16.5 mm

2.2 nF

2000 V DC

22.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Wima 1 pc(s) FKP thin film capacitor Radial lead 22 nF 2000 V DC, 700 V AC 10 % 27.5 mm (L x W x H) 31.5 x 15.0 x 26.0 mm

Item no:3464095

Unavailable

Conrad Electronic

(L x W x H) 31.5 x 15.0 x 26.0 mm

26.0 mm

22 nF

2000 V DC

27.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

Wima 1 pc(s) FKP thin film capacitor Radial lead 220 nF 1250 V DC, 600 V AC 10 % 37.5 mm (L x W x H) 41.5 x 19.0 x 32.0 mm Bulk

Item no:3464105

Unavailable

Conrad Electronic

(L x W x H) 41.5 x 19.0 x 32.0 mm

32.0 mm

220 nF

1250 V DC

37.5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1
