Wima MKP1J014702C00KSSD 1 pc(s) MKP thin film capacitor Radial lead 4.7 nF 630 V DC, 400 V AC 10 % 7.5 mm (L x W x H) 10
Part number:
Item no:
Product type
MKP thin film capacitor
Type
Radial lead
Capacity (elec.)
4.7 nF
Nominal voltage
630 V DC
400 V AC
Tolerance ±
10 %
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.48461
10
8% = € 0.04
€ 0.44560
25
11% = € 0.05
€ 0.42999
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.48461 / piece)
€ 0.48
plus VAT.
14-day return policy included
Technical specifications
- ESD Packaging: No ESD
- Series MKP10
- Design_1: Radial
- Applications: Impulse-loaded applications like e.g. switching power supplies, television and monitoring technology, lighting technology, audio and video range
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Properties_1: Dielectric made of polypropylene (PP) foil
- Receipts made from double-sided metalised plastic film
- Covering: Solvent-resistant, flame-inhibiting plastic casing with epoxide-resin cast, UL94V-0
- Connections made of tin-plated wire
- Impulse load capacity 200...1800V/µs
- self-healing
- Negative capacity change over temperature
- Pitch_1:7.5 mm
- Climate category IEC 55/100/56
- Capacitance 4.7 nF
- Capacity_1: 4.7
- Capacitance unit: NF
- Capacity Tolerance 10%
- Dielectric: Metallized PP film
- Nominal voltage DC 630 V
- Nominal voltage AC 400 V
- Reliability: 1 fit
- Lifetime_1: 300,000 h
- Insulation resistance_1: 100 ohms
- Product type
MKP thin film capacitor
- Type
Radial lead
- Dim
(L x W x H) 10.0 x 4.0 x 9.0 mm
- Capacity (elec.)
4.7 nF
- Nominal voltage
630 V DC
400 V AC
- Tolerance ±
10 %
- Material
Polypropylene
- Connection
THT
- Length
10.0 mm
- Width
4.0 mm
- Height
9.0 mm
- CS
7.5 mm
- Min. temperature
-55 °C
- Max. temperature
100 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
MKP1J014702C00KSSD
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3523643 Wima MKP1J014702C00KSSD 1 pc(s) MKP thin film capacitor Radial lead 4.7 nF 630 V DC, 400 V AC 10 % 7.5 mm (L x W x H) 10
User & Safety Instructions
User & Safety Instructions 3523643 Wima MKP1J014702C00KSSD 1 pc(s) MKP thin film capacitor Radial lead 4.7 nF 630 V DC, 400 V AC 10 % 7.5 mm (L x W x H) 10
Description

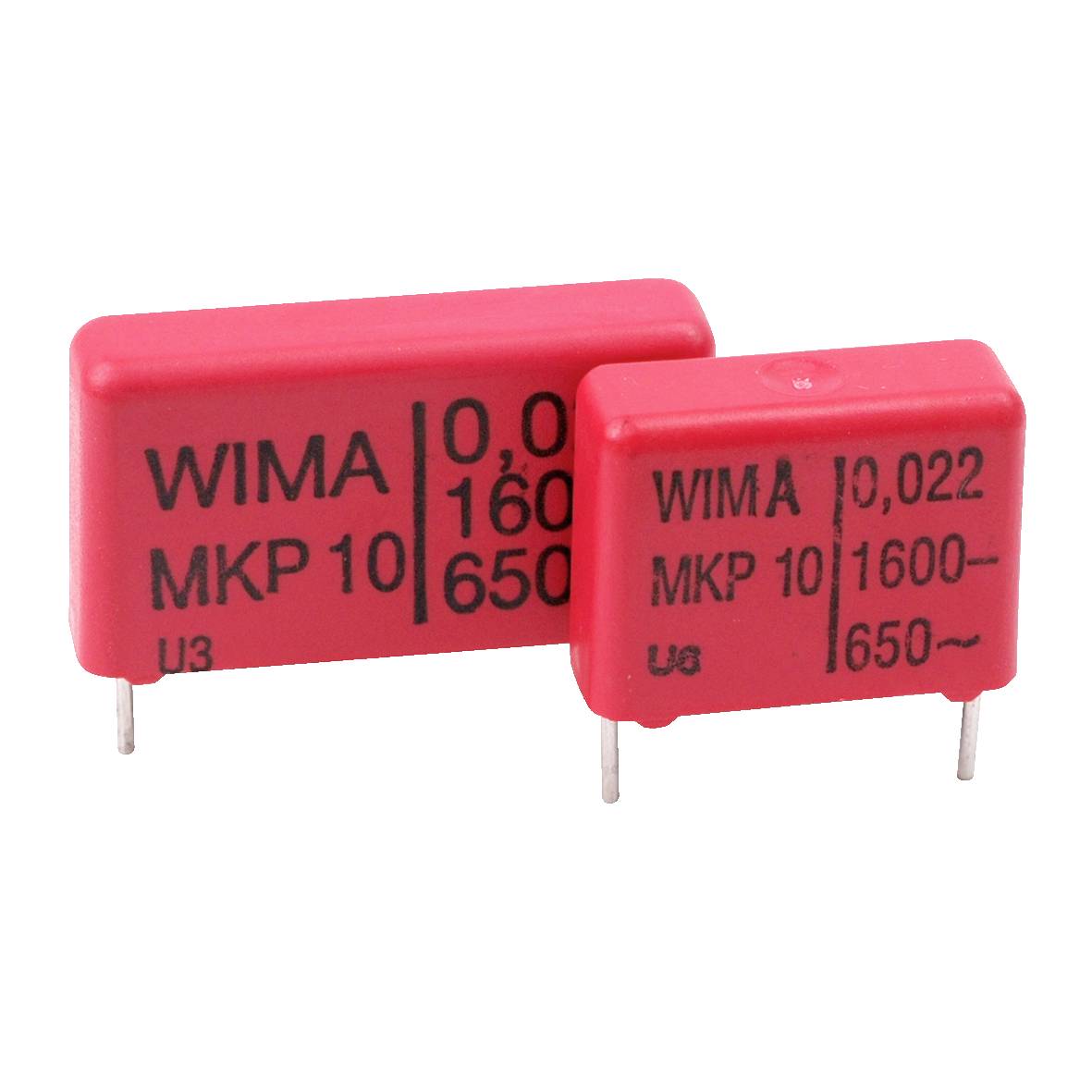

Wima MKP capacitors MKP10 RM7...37.5
