Buy Wima MKS2C032201B00KSSD 1 pc(s) MKT thin film capacitor Radial lead 220 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2

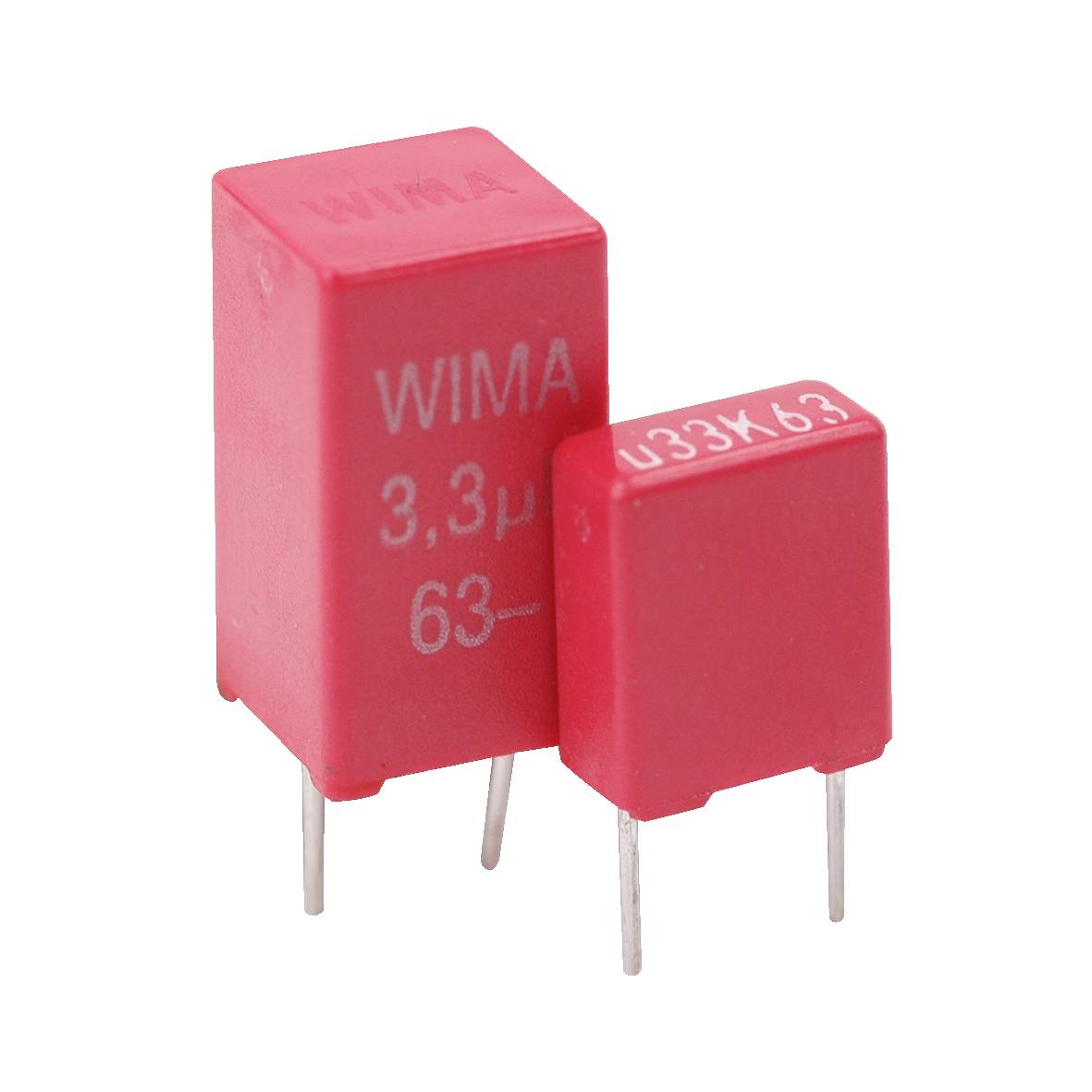

'Two red WIMA capacitors with visible value markings, showing 3.3µ 63V and u33 63V, standing upright with metal leads.'

Product type

MKT thin film capacitor

Type

Radial lead

Capacity (elec.)

220 nF

Nominal voltage

63 V DC

40 V AC

Tolerance ±

10 %

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

174 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 0.56483 / piece)

€ 0.56

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

ESD Packaging: No ESD
Series MKS2
Design_1: Radial
Applications:For general DC-applications: Bypass, blocking, coupling and decoupling, timing
Mounting type_1: THT
Delivery form_1: Loose
Connections_1: 2-pin
Properties_1: Dielectric made of polyethylene terephthalate (PET) foil
Receipts: Metalised
Covering: Solvent-resistant, flame-inhibiting plastic casing with epoxide-resin cast, UL94V-0
Connections made of tin-plated wire
self-healing
Pitch_1:5.0 mm
Climate category IEC 55/100/21
Capacitance 220 nF
Capacity_1: 220
Capacitance unit: NF
Capacity Tolerance 10%
Dielectric: Metallized PET film
Nominal voltage DC 63 V
Nominal voltage AC 40 V
Pulse load 15 V/µs
Reliability: 2.0 fit
Lifetime_1: 300,000 h
Insulation resistance_1: 1,000 MOhm

Product type: MKT thin film capacitor

Type: Radial lead

Dim: (L x W x H) 7.2 x 3.0 x 7.5 mm

Capacity (elec.): 220 nF

Nominal voltage: 63 V DC
40 V AC

Flank steepness: 15 V/µs

Tolerance ±: 10 %

Material: Polyethylene terephthalate

Connection: Wire

Length: 7.2 mm

Width: 3.0 mm

Height: 7.5 mm

CS: 5.0 mm

Min. temperature: 55 °C

Max. temperature: 100 °C

Content: 1 pc(s)

RoHS-compliant: Yes

Type: MKS2C032201B00KSSD

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Dim

Max. temperature

Height

Capacity (elec.)

Nominal voltage

Wima MKS2C032201B00KSSD 1 pc(s) MKT thin film capacitor Radial lead 220 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 3.0 x 7.5 mm

Item no:3523655

This article

(L x W x H) 7.2 x 3.0 x 7.5 mm

100 °C

7.5 mm

220 nF

63 V DC40 V AC

Wima 1 pc(s) MKT thin film capacitor Radial lead 15 nF 100 V DC, 63 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm Bulk

Item no:3464160

(L x W x H) 7.2 x 2.5 x 6.5 mm

100 °C

6.5 mm

15 nF

100 V DC63 V AC

Wima 1 pc(s) MKT thin film capacitor Radial lead 68 nF 100 V DC, 63 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm Bulk

Item no:3464161

(L x W x H) 7.2 x 2.5 x 6.5 mm

100 °C

6.5 mm

68 nF

100 V DC63 V AC

Wima MKS2C026801A00KSSD 1 pc(s) MKT thin film capacitor Radial lead 68 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm

Item no:3464162

(L x W x H) 7.2 x 2.5 x 6.5 mm

100 °C

6.5 mm

68 nF

63 V DC40 V AC

Wima 1 pc(s) MKT thin film capacitor Radial lead 150 nF 100 V DC, 63 V AC 10 % 5.0 mm (L x W x H) 7.2 x 3.5 x 8.5 mm Bulk

Item no:3464163

(L x W x H) 7.2 x 3.5 x 8.5 mm

100 °C

8.5 mm

150 nF

100 V DC63 V AC

Wima 1 pc(s) MKT thin film capacitor Radial lead 330 nF 100 V DC, 63 V AC 10 % 5.0 mm (L x W x H) 7.2 x 4.5 x 9.5 mm

Item no:3464164

(L x W x H) 7.2 x 4.5 x 9.5 mm

100 °C

9.5 mm

330 nF

100 V DC63 V AC

Wima 1 pc(s) MKT thin film capacitor Radial lead 47 nF 100 V DC, 63 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm Bulk

Item no:3466120

(L x W x H) 7.2 x 2.5 x 6.5 mm

100 °C

6.5 mm

47 nF

100 V DC63 V AC

Wima 1 pc(s) MKT thin film capacitor Radial lead 1.5 µF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 5.5 x 11.5 mm

Item no:3466121

(L x W x H) 7.2 x 5.5 x 11.5 mm

11.5 mm

1.5 µF

63 V DC40 V AC

Wima MKS2D021001A00KSSD 1 pc(s) MKT thin film capacitor Radial lead 10 nF 100 V DC, 63 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm Bulk

Item no:3523650

(L x W x H) 7.2 x 2.5 x 6.5 mm

100 °C

6.5 mm

10 nF

100 V DC63 V AC

Wima 1 pc(s) MKT thin film capacitor Radial lead 15 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm

Item no:3523651

(L x W x H) 7.2 x 2.5 x 6.5 mm

6.5 mm

15 nF

63 V DC40 V AC

Documents & Downloads

Datasheet

Datasheet 3523655 Wima MKS2C032201B00KSSD 1 pc(s) MKT thin film capacitor Radial lead 220 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2

User & Safety Instructions

User & Safety Instructions 3523655 Wima MKS2C032201B00KSSD 1 pc(s) MKT thin film capacitor Radial lead 220 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2

Description

Wima MKT condensers MKS2 RM5 10%
