Buy Wima MKS2D034701E00KSSD 1 pc(s) MKT thin film capacitor Radial lead 470 nF 100 V DC, 63 V AC 10 % 5.0 mm (L x W x H) 7.2

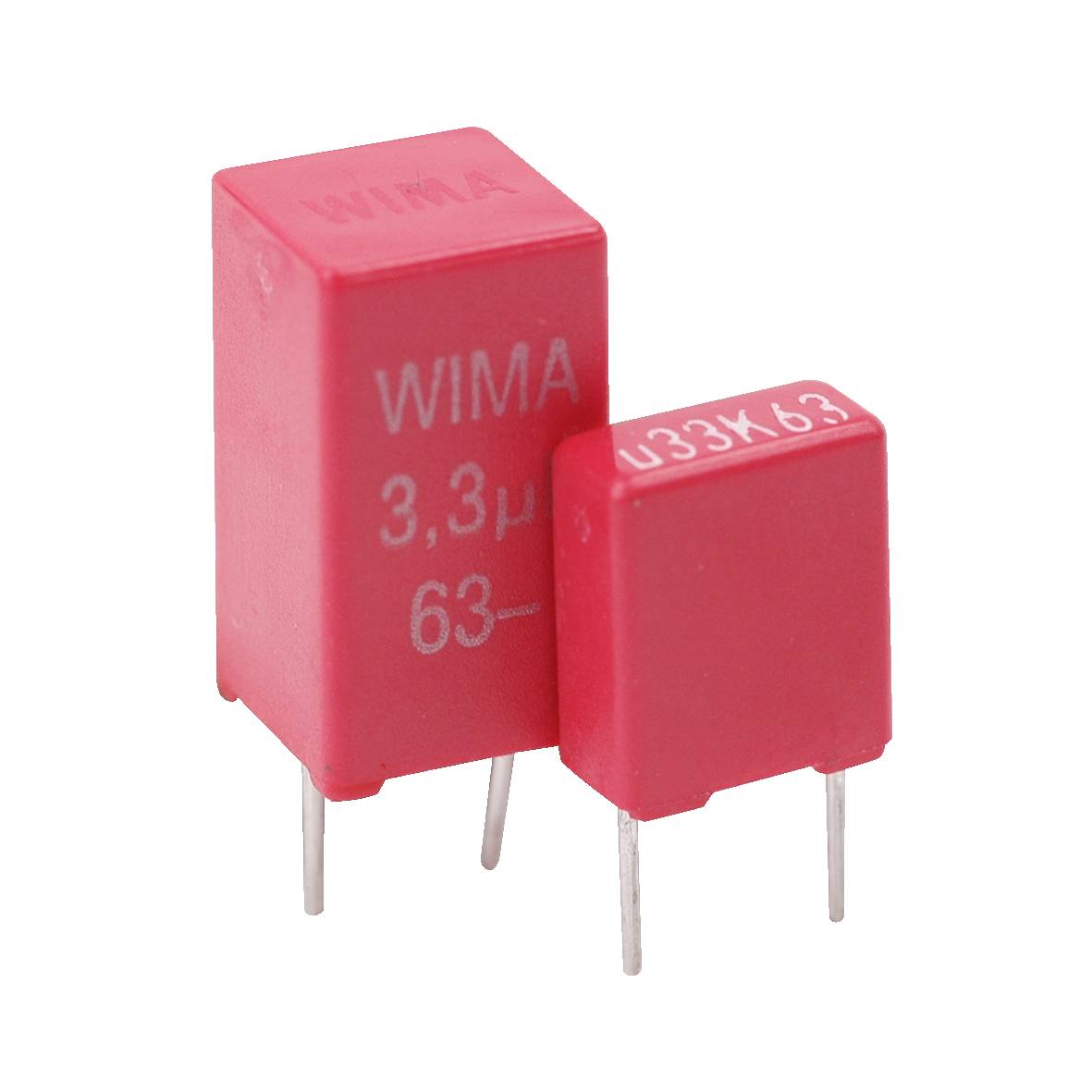

Two red capacitors with 'WIMA' branding. The larger reads '3,3μ 63', and the smaller reads 'U33K63'. Both have metal leads at the bottom.

Product type

MKT thin film capacitor

Type

Radial lead

Capacity (elec.)

470 nF

Nominal voltage

100 V DC

63 V AC

Tolerance ±

10 %

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

163 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 0.7106 / piece)

€ 0.71

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

ESD Packaging: No ESD
Series MKS2
Design_1: Radial
Applications:For general DC-applications: Bypass, blocking, coupling and decoupling, timing
Mounting type_1: THT
Delivery form_1: Loose
Connections_1: 2-pin
Properties_1: Dielectric made of polyethylene terephthalate (PET) foil
Receipts: Metalised
Covering: Solvent-resistant, flame-inhibiting plastic casing with epoxide-resin cast, UL94V-0
Connections made of tin-plated wire
self-healing
Pitch_1:5.0 mm
Climate category IEC 55/100/21
Capacitance 470 nF
Capacity_1: 470
Capacitance unit: NF
Capacity Tolerance 10%
Dielectric: Metallized PET film
Nominal voltage DC 100 V
Nominal voltage AC 63 V
Pulse load 20 V/µs
Reliability: 2.0 fit
Lifetime_1: 300,000 h
Insulation value in sec.: 3,000 sec.

Product type: MKT thin film capacitor

Type: Radial lead

Dim: (L x W x H) 7.2 x 4.5 x 9.5 mm

Capacity (elec.): 470 nF

Nominal voltage: 100 V DC
63 V AC

Flank steepness: 20 V/µs

Tolerance ±: 10 %

Material: PET

Connection: Wire

Length: 7.2 mm

Width: 4.5 mm

Height: 9.5 mm

CS: 5.0 mm

Min. temperature: -55 °C

Max. temperature: 100 °C

Content: 1 pc(s)

RoHS-compliant: Yes

Type: MKS2D034701E00KSSD

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Dim

Max. temperature

Height

Capacity (elec.)

Nominal voltage

Wima 1 pc(s) MKT thin film capacitor Radial lead 15 nF 100 V DC, 63 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm Bulk

Item no:3464160

(L x W x H) 7.2 x 2.5 x 6.5 mm

100 °C

6.5 mm

15 nF

100 V DC63 V AC

Wima 1 pc(s) MKT thin film capacitor Radial lead 68 nF 100 V DC, 63 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm Bulk

Item no:3464161

(L x W x H) 7.2 x 2.5 x 6.5 mm

100 °C

6.5 mm

68 nF

100 V DC63 V AC

Wima MKS2C026801A00KSSD 1 pc(s) MKT thin film capacitor Radial lead 68 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm

Item no:3464162

(L x W x H) 7.2 x 2.5 x 6.5 mm

100 °C

6.5 mm

68 nF

63 V DC40 V AC

Wima 1 pc(s) MKT thin film capacitor Radial lead 150 nF 100 V DC, 63 V AC 10 % 5.0 mm (L x W x H) 7.2 x 3.5 x 8.5 mm Bulk

Item no:3464163

(L x W x H) 7.2 x 3.5 x 8.5 mm

100 °C

8.5 mm

150 nF

100 V DC63 V AC

Wima 1 pc(s) MKT thin film capacitor Radial lead 330 nF 100 V DC, 63 V AC 10 % 5.0 mm (L x W x H) 7.2 x 4.5 x 9.5 mm

Item no:3464164

(L x W x H) 7.2 x 4.5 x 9.5 mm

100 °C

9.5 mm

330 nF

100 V DC63 V AC

Wima 1 pc(s) MKT thin film capacitor Radial lead 47 nF 100 V DC, 63 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm Bulk

Item no:3466120

(L x W x H) 7.2 x 2.5 x 6.5 mm

100 °C

6.5 mm

47 nF

100 V DC63 V AC

Wima 1 pc(s) MKT thin film capacitor Radial lead 1.5 µF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 5.5 x 11.5 mm

Item no:3466121

(L x W x H) 7.2 x 5.5 x 11.5 mm

11.5 mm

1.5 µF

63 V DC40 V AC

Wima MKS2D021001A00KSSD 1 pc(s) MKT thin film capacitor Radial lead 10 nF 100 V DC, 63 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm Bulk

Item no:3523650

(L x W x H) 7.2 x 2.5 x 6.5 mm

100 °C

6.5 mm

10 nF

100 V DC63 V AC

Wima 1 pc(s) MKT thin film capacitor Radial lead 15 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm

Item no:3523651

(L x W x H) 7.2 x 2.5 x 6.5 mm

6.5 mm

15 nF

63 V DC40 V AC

Wima MKS2C022201A00KSSD 1 pc(s) MKT thin film capacitor Radial lead 22 nF 63 V DC, 40 V AC 10 % 5.0 mm (L x W x H) 7.2 x 2.5 x 6.5 mm

Item no:3523652

(L x W x H) 7.2 x 2.5 x 6.5 mm

100 °C

6.5 mm

22 nF

63 V DC40 V AC

Documents & Downloads

Datasheet

Datasheet 3523657 Wima MKS2D034701E00KSSD 1 pc(s) MKT thin film capacitor Radial lead 470 nF 100 V DC, 63 V AC 10 % 5.0 mm (L x W x H) 7.2

User & Safety Instructions

User & Safety Instructions 3523657 Wima MKS2D034701E00KSSD 1 pc(s) MKT thin film capacitor Radial lead 470 nF 100 V DC, 63 V AC 10 % 5.0 mm (L x W x H) 7.2

Description

Wima MKT condensers MKS2 RM5 10%
