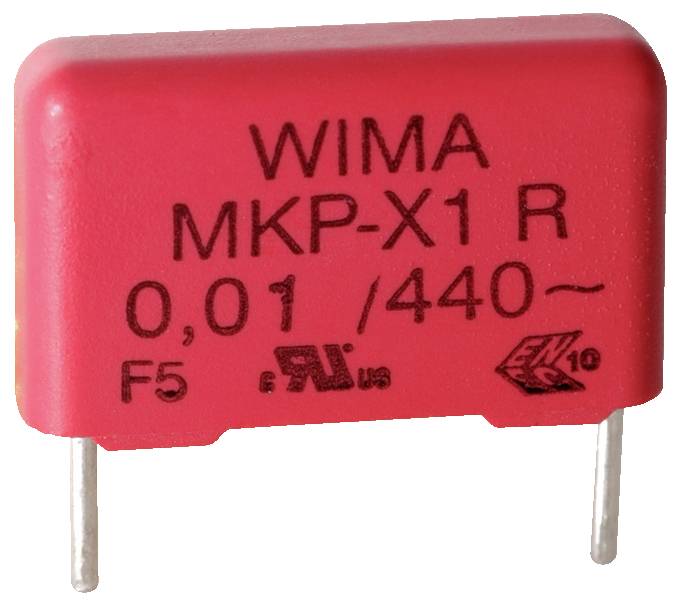

Wima MKX14W31005B00KSSD MKP suppression capacitor Radial lead 440 V AC 10 % 1 pc(s)
Part number:
Item no:
Product type
MKP suppression capacitor
Type
Radial lead
Tolerance ±
10 %
Height
15.0 mm
Nominal voltage
440 V AC
Datasheet (PDF)
Highlights & Details
Wima MKP-suppression capacitor 100nF 440V RM22,5
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series MKP-X1
- Approvals: CULus,ENEC
- Design_1: Radial
- Applications: Class X1 suppression applications for compliance with EMC regulations, line parallel capacitors between phase and neutral conductor or phase and phase, use at high peak voltages, peak pulse voltage, max. 4kV
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Properties_1: Winding technology, class X1
- Dielectric made of polypropylene (PP) Film
- Anti-metallized pads
- Solvent-resistant, flame-inhibiting Hplastic casing with epoxy resin casting (UL94V-0)
- Connections made of tin-plated wire
- Safe regeneration characteristics
- Increased Korona insert voltage (partial discharge) through internal series connection
- The low-attenuation design with low ESR provides a high degree of interference suppression.
- Pitch_1:22.5 mm
- Climate category IEC 55/105/56
- Capacitance 100 nF
- Capacity_1: 100
- Capacitance unit: NF
- Capacity Tolerance 10%
- Dielectric: Metallized PP film
- Nominal voltage AC 440 V
- Pulse load 100 V/µs
- Class X1
- Reliability: 2 fit
- Lifetime_1: 300,000 h
- Insulation resistance_1: 15,000 MOhm
- Product type
MKP suppression capacitor
- Type
Radial lead
- Nominal voltage
440 V AC
- Tolerance ±
10 %
- Length
26.5 mm
- Width
6.0 mm
- Height
15.0 mm
- Content
1 pc(s)
- Dim
(L x W x H) 26.5 x 6.0 x 15.0 mm
- RoHS-compliant
Yes
- Type
MKX14W31005B00KSSD
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-55 °C
- Certification marks
IEC 60384-14/4, UL 60384-14, CAN/CSA E60384-14
Documents & Downloads
Datasheet
Datasheet 3463523 Wima MKX14W31005B00KSSD MKP suppression capacitor Radial lead 440 V AC 10 % 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3463523 Wima MKX14W31005B00KSSD MKP suppression capacitor Radial lead 440 V AC 10 % 1 pc(s)
Description
Wima MKP suppression capacitor series M
