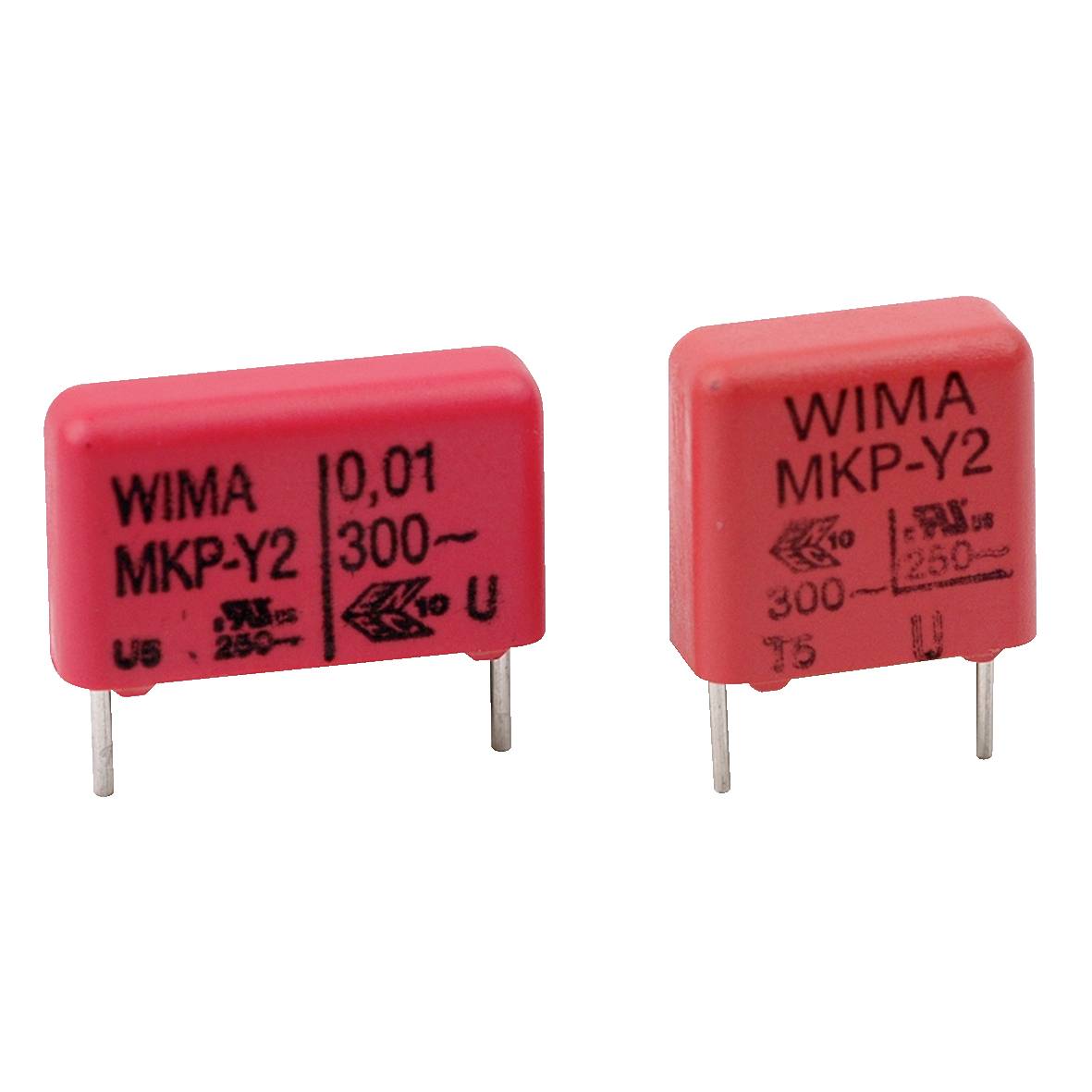

Wima MKY22W14703F00KSSD MKP suppression capacitor Radial lead 300 V AC 10 % 1 pc(s)
Part number:
Item no:
Product type
MKP suppression capacitor
Type
Radial lead
Tolerance ±
10 %
Height
11.0 mm
Nominal voltage
300 V AC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.40316
50
9% = € 0.04
€ 0.36643
100
13% = € 0.05
€ 0.35176
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.40316 / piece)
€ 0.40
plus VAT.
14-day return policy included
Highlights & Details
Wima MKP-suppression capacitor 4.7nF 300V RM10
Our service for you
Technical specifications
- ESD Packaging: No ESD
- MKP-Y2 series
- Approvals: CULus,ENEC
- Design_1: Radial
- Application: Class Y2 suppression interference applications for compliance with EMC regulations, line parallel capacitor between phase or neutral conductor and touchable, protective-grounded housing, bridging the basic insulation or additional insulation impulse peak voltage max. 5kV, also approved for X1 applications as per UL
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Properties_1: Wrapping technology, class Y2
- Safe regeneration characteristics
- Dielectric made of polypropylene (PP) Film
- Receipts: Metallized plastic film
- Connections made of tin-plated wire
- Covering: Solvent-resistant, flame-inhibiting plastic casing with epoxide-resin cast, UL94V-0
- The low-attenuation design with low ESR provides a high degree of interference suppression.
- Pitch_1:10 mm
- Climate category IEC 55/105/56/C
- Capacitance 4.7 nF
- Capacity_1: 4.7
- Capacitance unit: NF
- Capacity Tolerance 10%
- Dielectric: Metallized PP film
- Nominal voltage AC 300 V
- Pulse load 100 V/µs
- Class Y2
- Reliability: 2 fit
- Lifetime_1: 300,000 h
- Insulation resistance_1: 15,000 MOhm
- Product type
MKP suppression capacitor
- Type
Radial lead
- Nominal voltage
300 V AC
- Tolerance ±
10 %
- Length
13.0 mm
- Width
5.0 mm
- Height
11.0 mm
- Content
1 pc(s)
- Dim
(L x W x H) 13.0 x 5.0 x 11.0 mm
- RoHS-compliant
Yes
- Type
MKY22W14703F00KSSD
Documents & Downloads
Datasheet
Datasheet 3523648 Wima MKY22W14703F00KSSD MKP suppression capacitor Radial lead 300 V AC 10 % 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3523648 Wima MKY22W14703F00KSSD MKP suppression capacitor Radial lead 300 V AC 10 % 1 pc(s)
Description
Wima MKP suppression capacitor series
